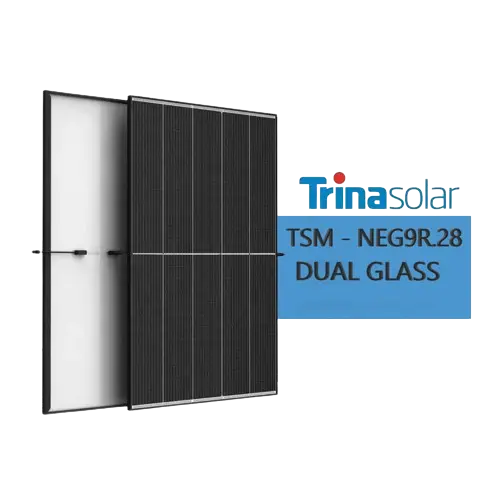

Trina Solar Vertex S+ TSM–NEG9R.28 455W black frame
Power: 455W
Manufacturer: Trina Solar
Dimensions: 1762x1134x30mm
Frame: Black Efficiency: 22.8%
Efficiency guarantee: up to -0.4% annually
Product Warranty: 25 years
VERTEX S+ 455W
Trina Solar Vertex S+ 455W (NEG9R.28) black frame – reliable solar modules for your projects
Trina Solar – one of the oldest and most reliable solar module manufacturers in the world, having started its operations in 1997. With more than 25 years of experience, Trina Solar has become one of the global leaders in solar energy, renowned for innovation, reliability and extremely high product quality.
The company constantly invests in the development of new technologies, and its modules are successfully operating in millions of solar power plants around the world.
Trina Solar Vertex S+ dual glass solar module
Compact size - more power for your needs
Main technical parameters
Up to 455 W, 22.8% module efficiency due to high-density connection technology
Multi-busbar – for better light capture, lower resistance, improved current collection and higher reliability
Reduced installation costs – due to increased power range and efficiency
Better performance in warm weather – due to low temperature coefficient and optimized operating temperature.
Double glazing – more security and sustainability
Improved Vertex S double glazing, less prone to micro-cracks and scratches during installation
Excellent resistance to fire, weather, salt spray, sand dust and ammonia – suitable for use on coasts, in high temperatures, humidity and harsh environmental conditions.
Certificates:
IEC61215 / IEC61730 / IEC61701 / IEC62716
ISO 9001: Quality Management System
ISO 14001: Environmental management system
ISO 14064: Greenhouse gas emissions verification
ISO 45001: Occupational health and safety management system
ES-28 WEEE compliant | Recyclable packaging.
Low wear – longer warranty, higher output
First year degradation – 1%, annual – 0.4%
25-year product warranty and 30-year power warranty
A universal solution for residential and commercial roofs
Easy to integrate, compatible with many existing inverters and mounting systems
Ideal size and weight, convenient for installation
Excellent choice for roofs with limited load (similar weight to single-glazed versions)
Mechanical resistance – up to 5400 Pa positive and 4000 Pa negative pressure.
Trina Solar Solar Modules
Below you will find the necessary documents and certificates.
