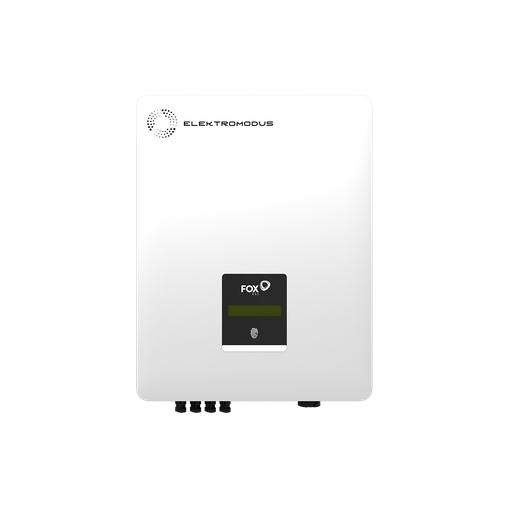

String Inverter 3Ph. FoxESS T25-G3
Nominal power: 25 kW
MPPT: 2
Strings: 2+2
Maximum. DC input power: 37500W
Maximum efficiency: 98.6%
MPPT Input voltage range: 140-1000V
Maximum DC input voltage: 1100V
Protection class: IP65
Dimensions: 370 × 480 × 183.5 mm
Weight: 21kg
Control: LCD screen, app, website
Manufacturer's warranty: 12 years.
This product is no longer available.
QUALITY IS PRICELESS | PRECISION ENGINEERED
Foxess inverters are precision engineered to provide maximum performance, efficiency, reliability and longevity.
The quality of components used will directly impact on the lifespan
of an inverter, and we only use the highest quality components from the
world’s leading manufacturers.

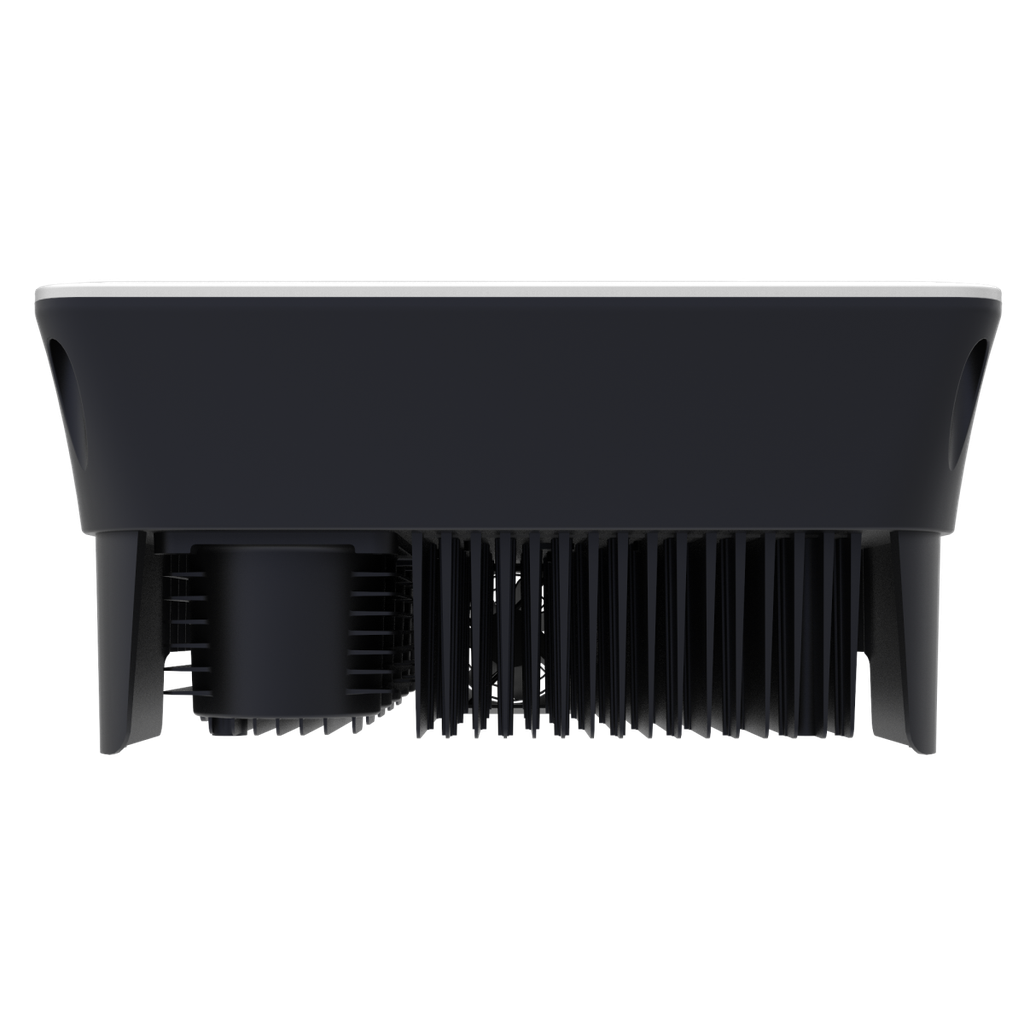

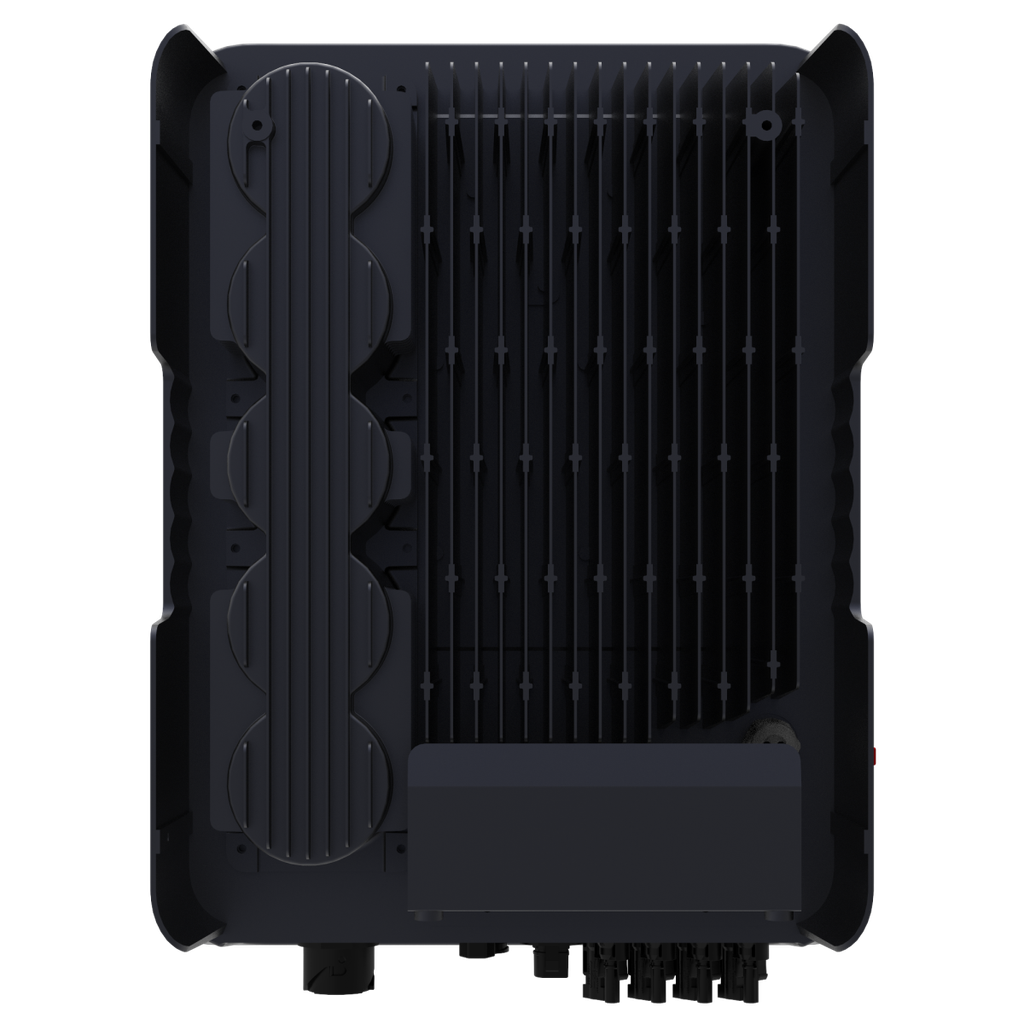

Foxess inverters incorporate a unique heat-sink and cooling fin design. It is integrated into the inverter casing to ensure optimal direct contact with heat generating components. We use a star design on the cooling fin, creating a larger surface area and this larger contact surface greatly increases the cooling effect.
Safety & Security
Enhanced safety features using advanced hardware & software protection.
High Efficiency
Maximum efficiency of between 97.4% (single-phase) and 98.6% (3-phase).
IP65 Rated
Suitable for indoor and outdoor installation for maximum flexibility.
Low Start-Up Voltage
Low start-up voltage for wider generation windows.
Remote Monitoring
Feel free to choose on which device you want to monitor the solar power plant.
High Reliability
Integrated die-casting craft and high-class imported and domestic components.
Remote monitoring of the Solar Power Plant
Monitor the activity of the solar power plant by using the FoxCloud application on your mobile phone or by using the website https://www.foxesscloud.com , these tools will give you access to the Inverter performance data, production schedules, status and other information.

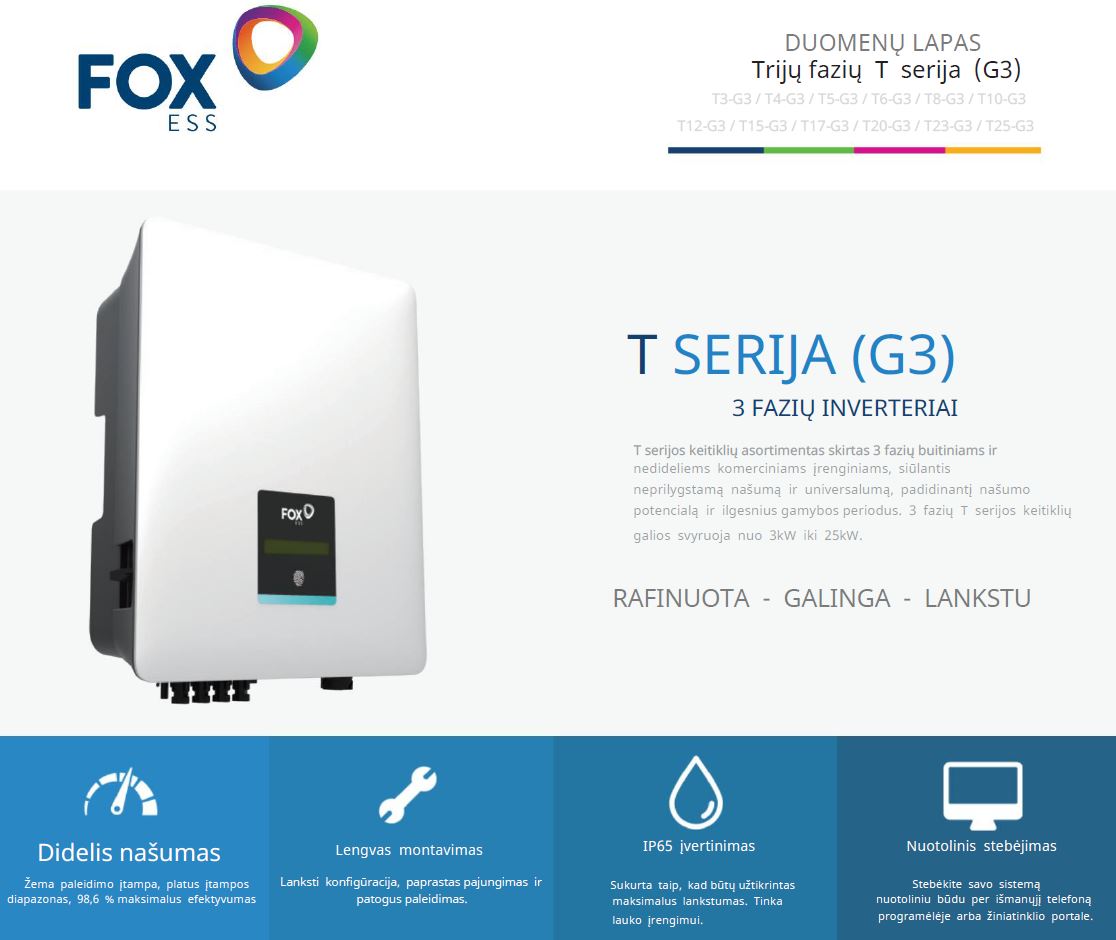

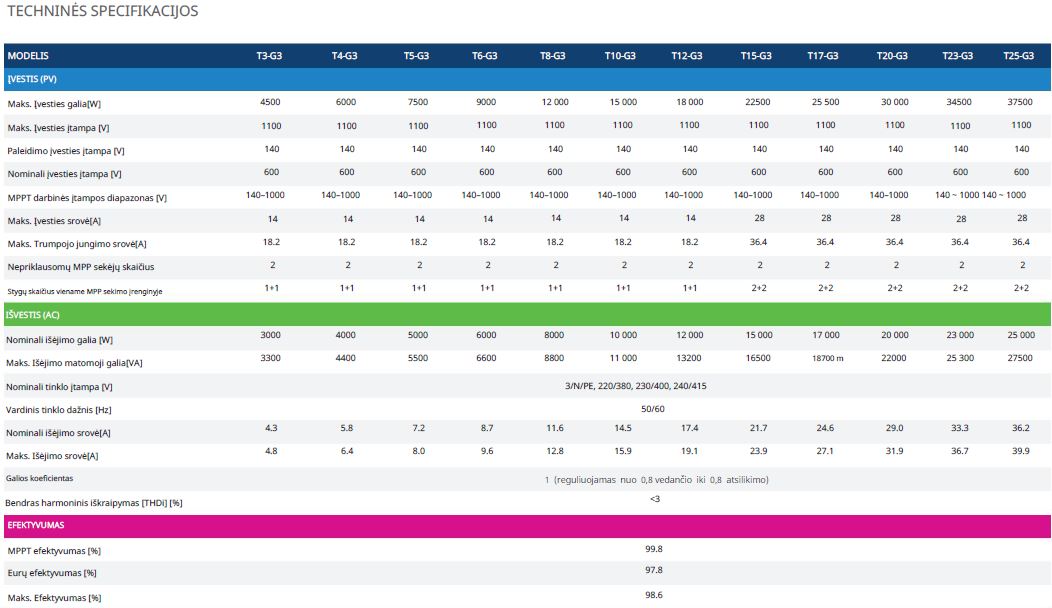

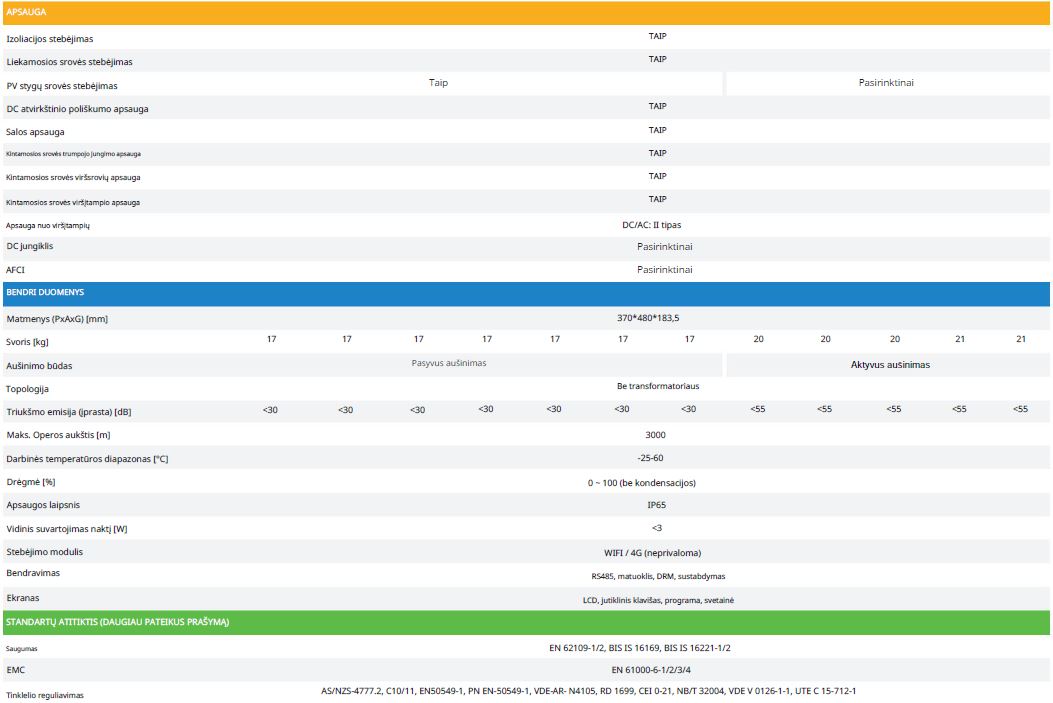

We invite you to familiarize yourself with the technical documentation of the current converter, where you will find all the necessary information. Below are the data sheets in Lithuanian, if you want to see the parameters in English, click on the link marked below this text.
Technical datasheet in English language
