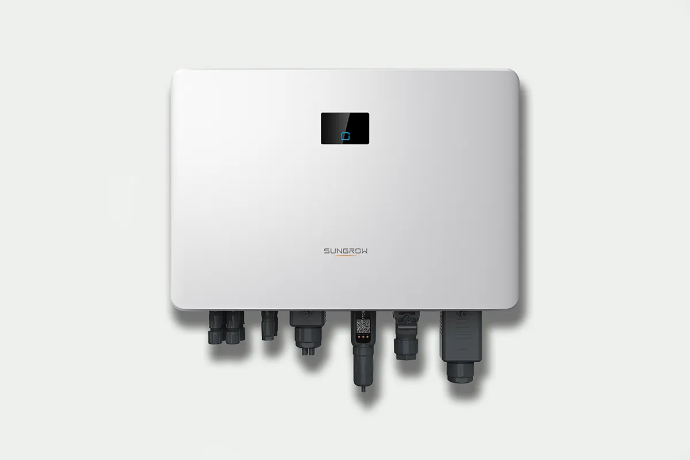

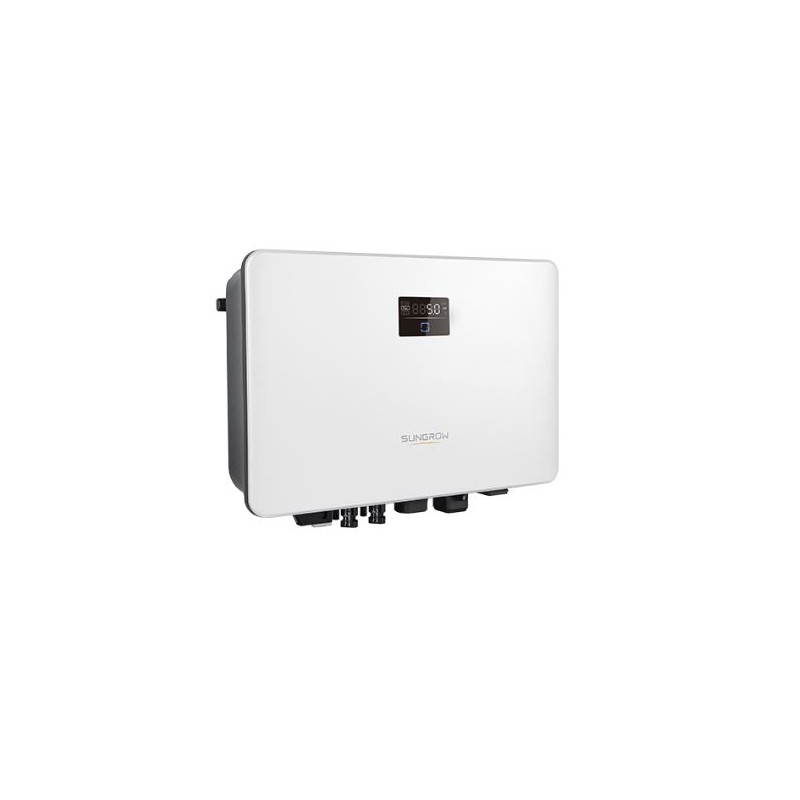

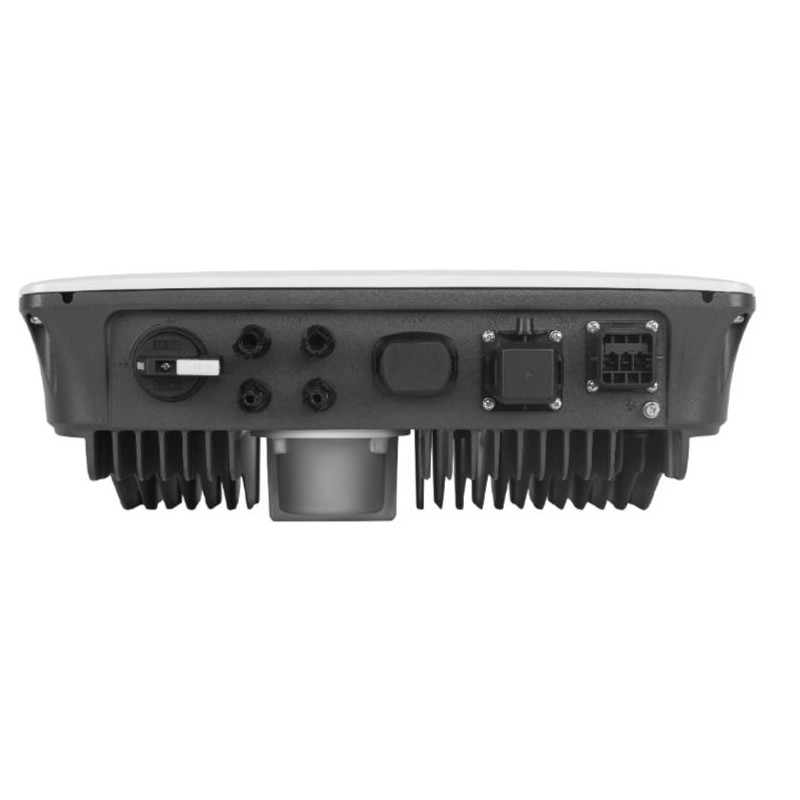

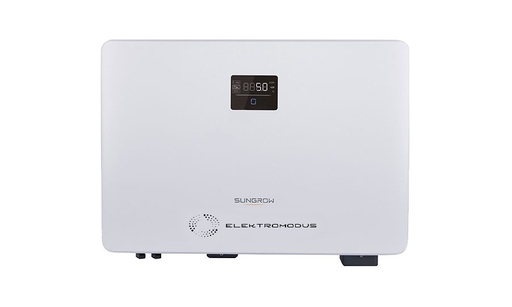

Hybrid inverter 1Ph. Sungrow SH6.0RS
Nominal power: 6 kW
MPPT: 2/1
Maximum. DC input power: 13000W
Maximum efficiency: 97.7%
MPPT Input voltage range: 40-560V
Maximum DC input voltage: 600V
Protection class: IP65
Dimensions: 490 × 340 × 170 mm
Weight: 18.5 kg
Control: LED digital display, Led indicator, app, website
Manufacturer's warranty: 10 years.
This product is no longer available.
SUNGROW
CLEAN POWER FOR ALL
SAFE AND RELIABLE
Built-in Type II DC&AC SPD
IIntegrated arc fault circuit interrupter
Corrosion protection rating at C5
SMART MANAGEMENT
Real time data (10 seconds refresh sample)
24/7 live monitoring both online and with integrated display
Online IV curve scan and diagnosis
HIGH YIELD
Compatible with high power PV modules and bifacial modules
Lower startup & wider MPPT voltage range
Built-in smart PID recovery function
USER FRIENDLY SETUP
Plug and play installation
One-click access to iSolar Cloud monitoring platform
Light and compact with optimized heat dissipation
Blackout?
No, thanks.
Give your daily life an uninterrupted flow of energy, even in the event of a power outage, as the most advanced solar hybrid inverters and battery storage solutions take care of continuing to power your devices.
BLACK-START CAPABLE
Nothing to worry about! In the event of a power failure, the 1-phase hybrid inverter will
automatically switch to backup mode - you won't notice or feel the process. In less than 10ms the backup switch will open and the load connected to the backup port will be powered by Batteries and Solar.
ALWAYS AVAILABLE
Per metus pranešama apie 14 700 elektros energijos tiekimo nutraukimų Europoje. Bet tai yra kažkas, dėl ko jums nebereikia jaudintis! Elektros energijos tiekimo metu 3 fazių hibridinis inverteris gali maitinti pasirinktą namų apkrovą su tikru 3 fazių atsarginiu maitinimu.
LOWER COST
The best thing about it? No need for any external backup box.
More possibilities. More power. More security. Less costs. Hybrid inverter - for you.
Remote monitoring of the Solar Power Plant
Monitor the activity of the solar power plant by using the ISolarCloud application on your mobile phone or by using the website https://www.isolarcloud.eu/ , these tools will give you access to the Inverter performance data, production schedules, status and other information.
The Pioneer
The 1-phase Hybrid inverter has proven its functionality and quality since 2015. The new generation offers seamless transition to backup mode, PID Recovery and is still light and easy to install - innovation at its best.

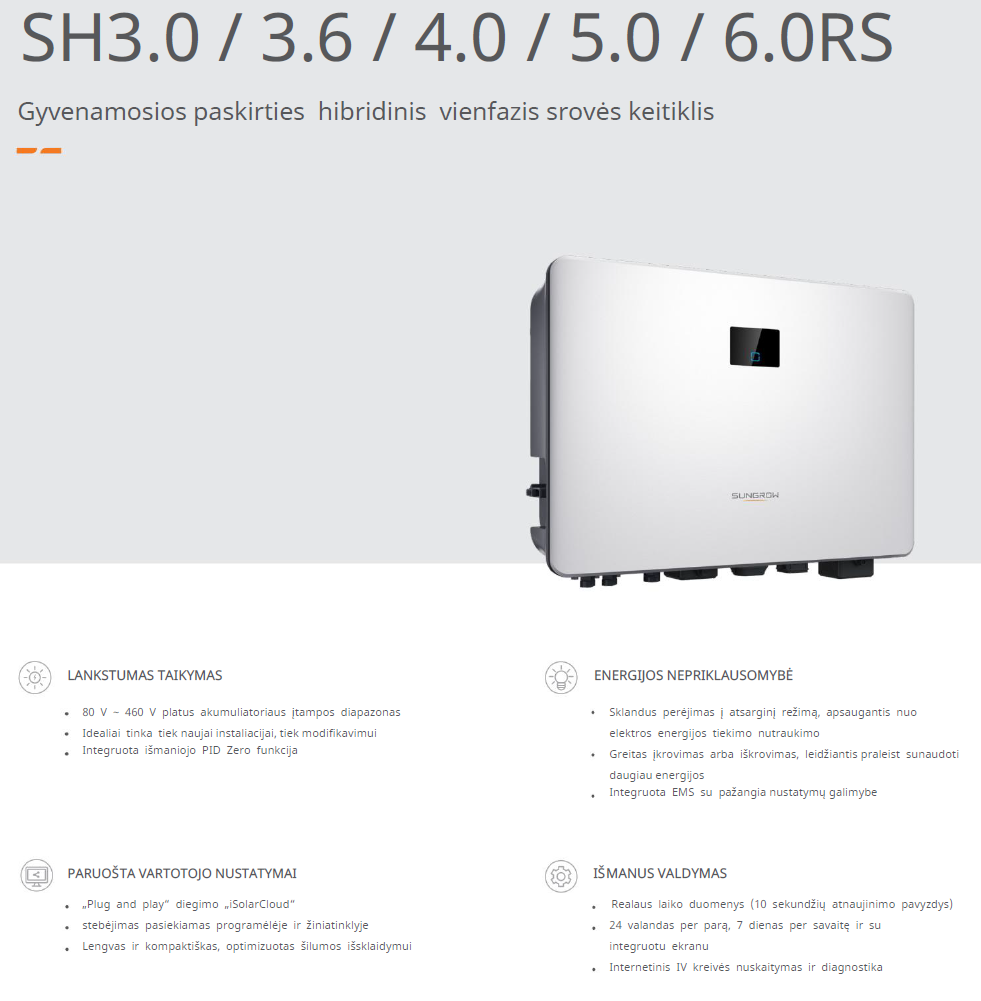

SH3.0RS, SH3.6RS, SH4.0RS, SH5.0RS, SH6.0RS

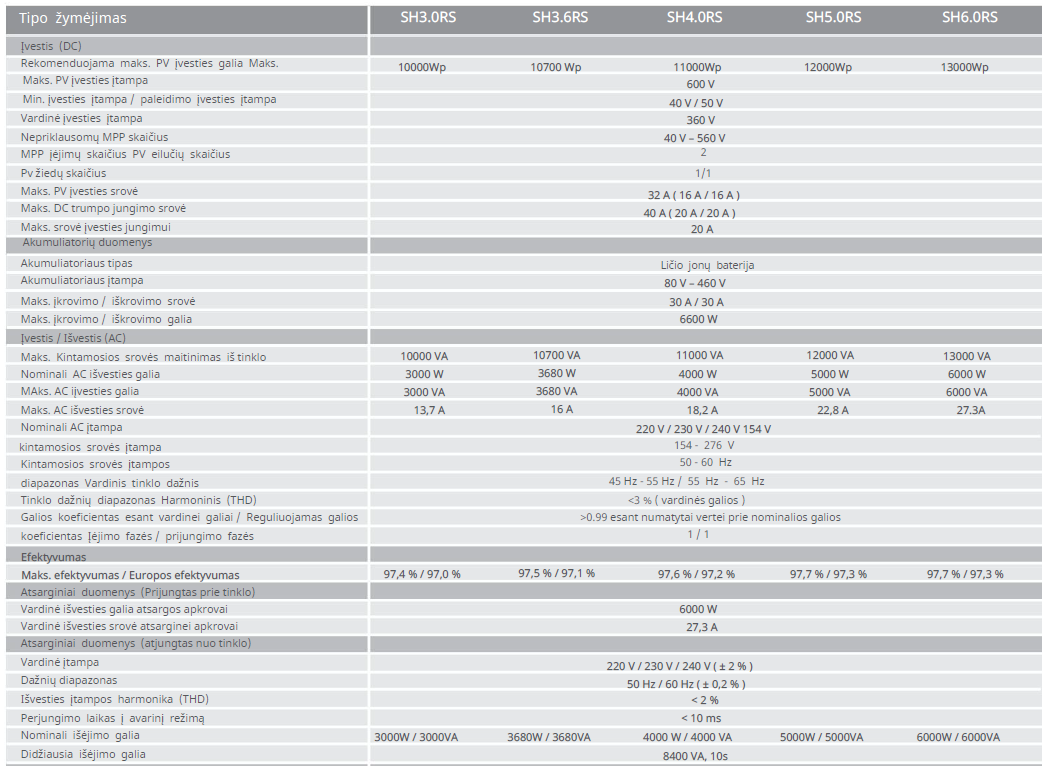

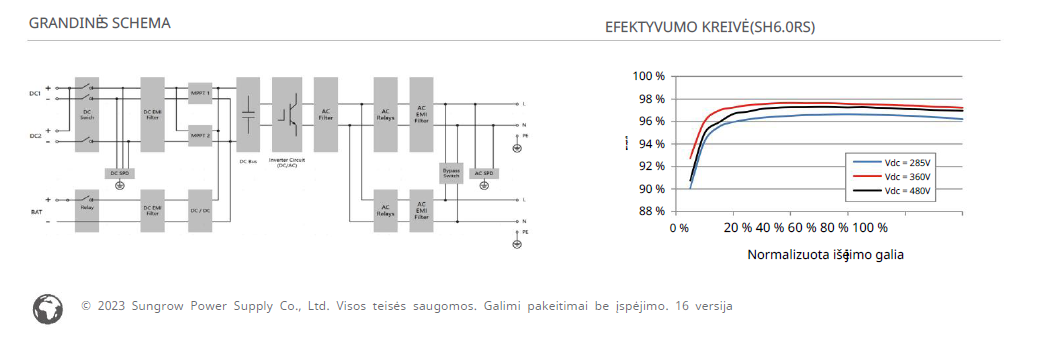

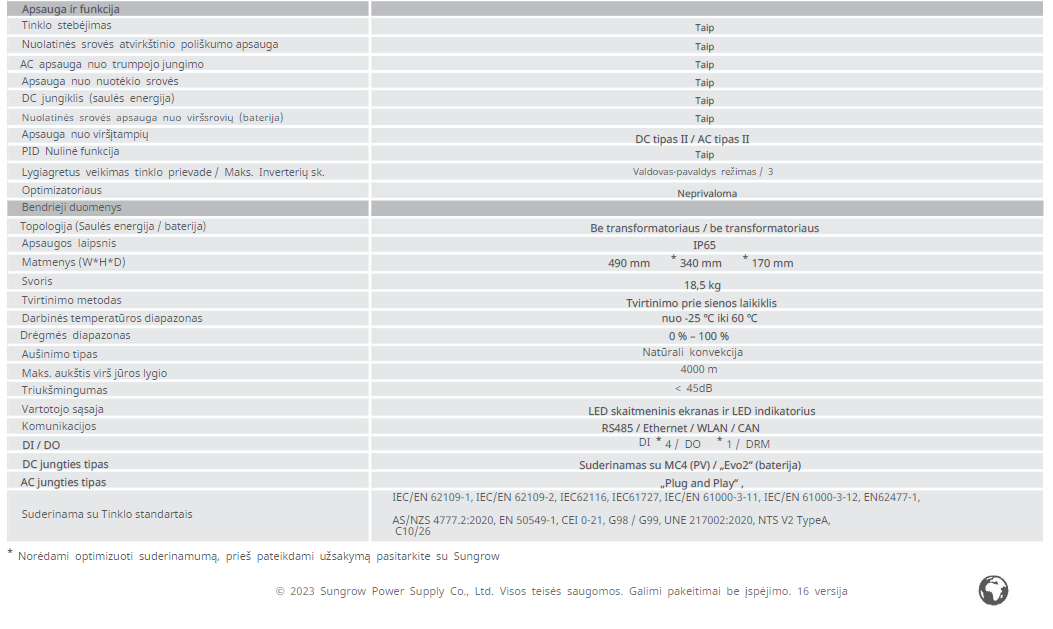

We invite you to familiarize yourself with the technical documentation of the current converter, where you will find all the necessary information. Below are the data sheets in Lithuanian, if you want to see the parameters in English, click on the link marked below this text.
