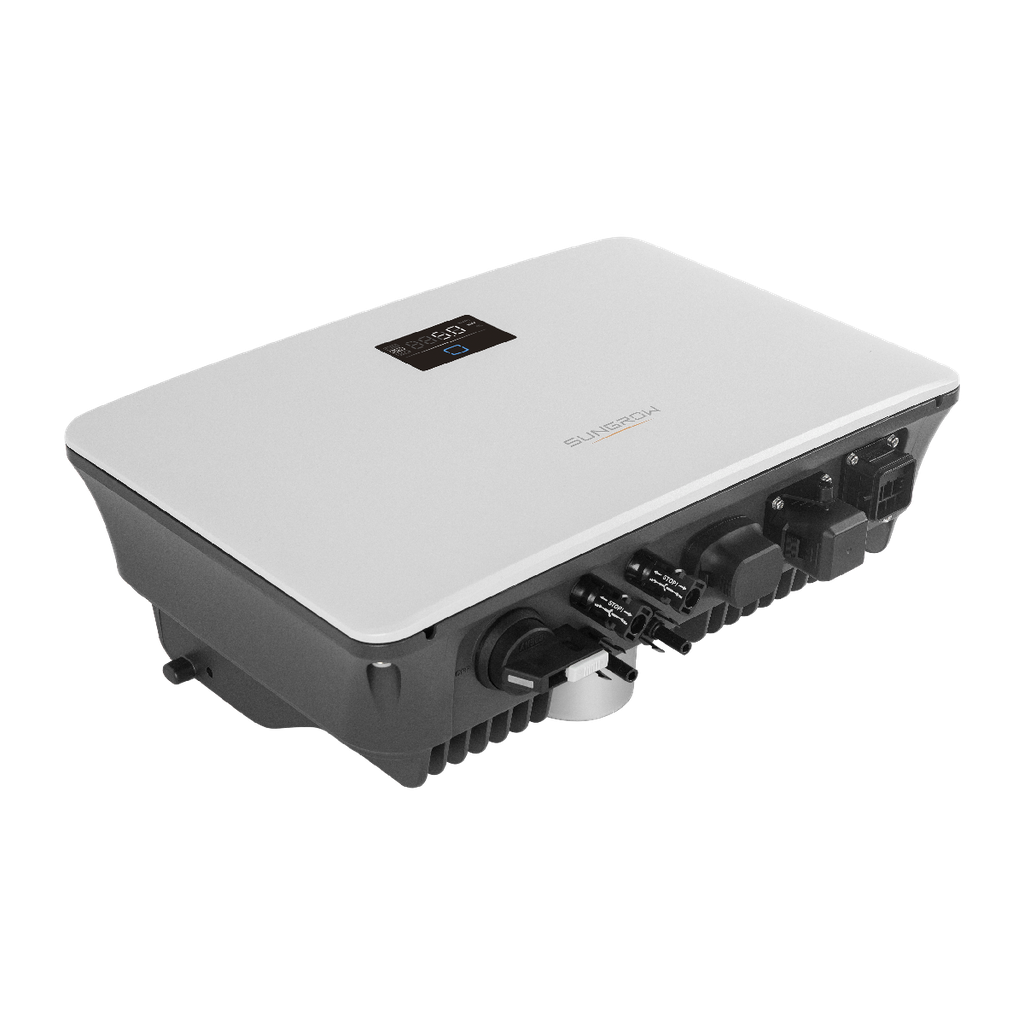

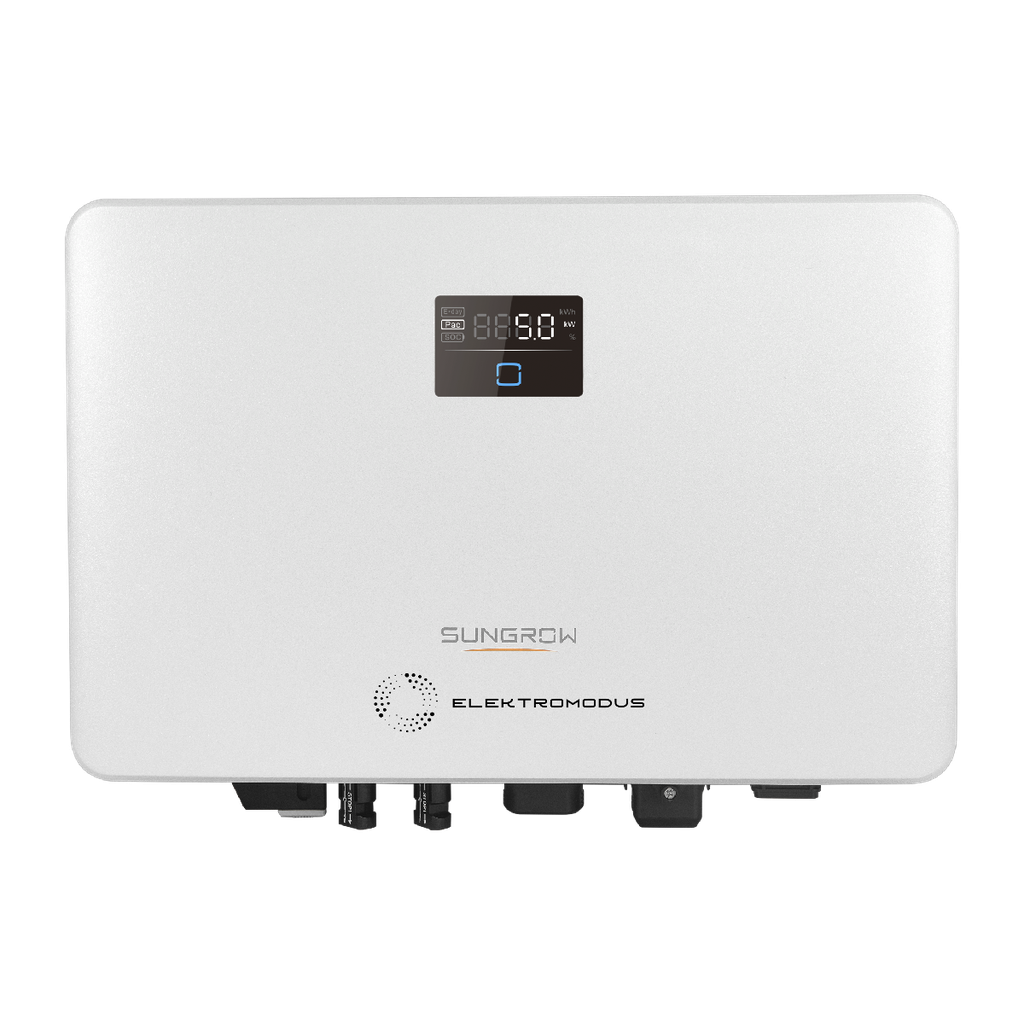

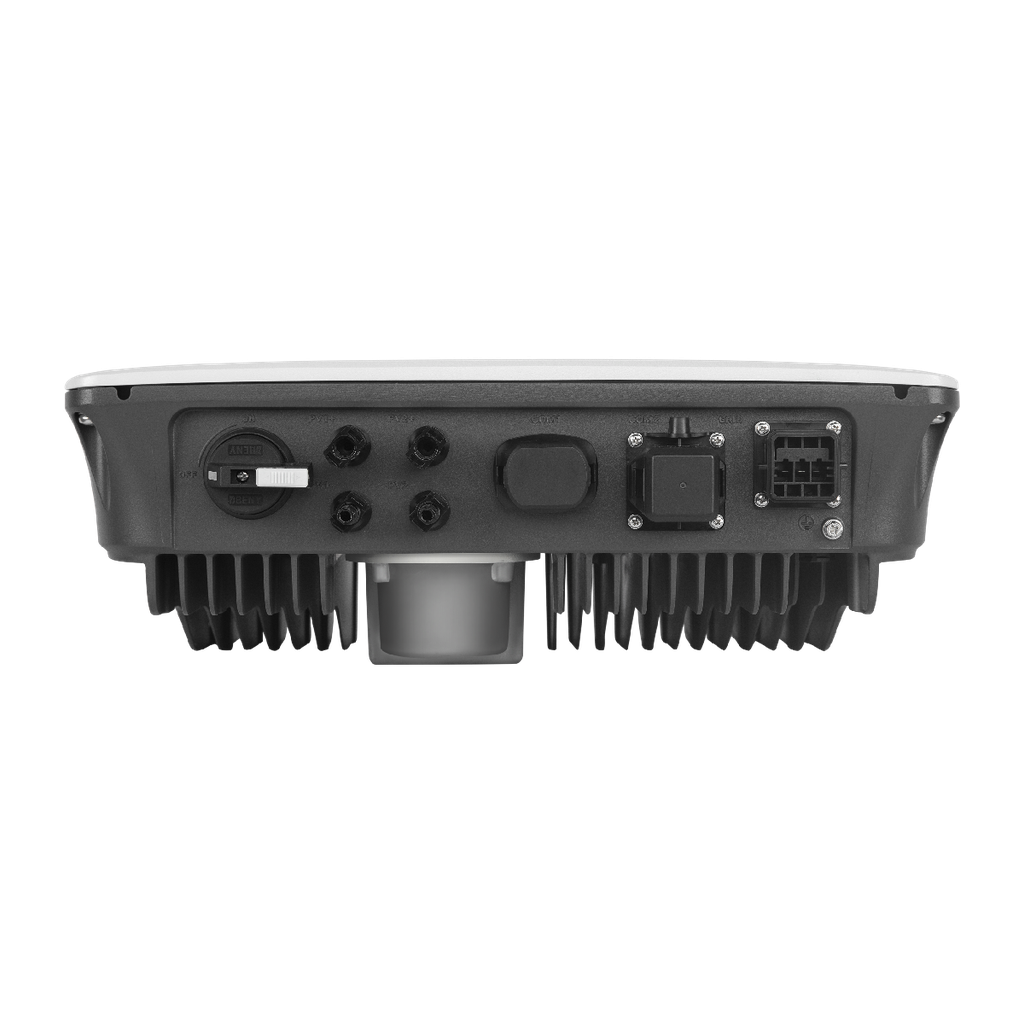

String inverter 1Ph. Sungrow SG5.0RS
Nominal power: 5 kW
MPPT: 2/1
Maximum. DC input power: 7500W
Maximum efficiency: 97.9%
MPPT Input voltage range: 40-560V
Maximum DC input voltage: 600V
Protection class: IP65
Dimensions: 410 × 270 × 150 mm
Weight: 10 kg
Control: LED digital display, Led indicator, app, website
Manufacturer's warranty: 10 years.
This product is no longer available.
2-5 darbo dienų trukmės pristatymas, taipogi galite prekes atsiimti Vilniuje arba Šiauliuose. Kilus klausimams: info@elektromodus.lt
SUNGROW
CLEAN POWER FOR ALL

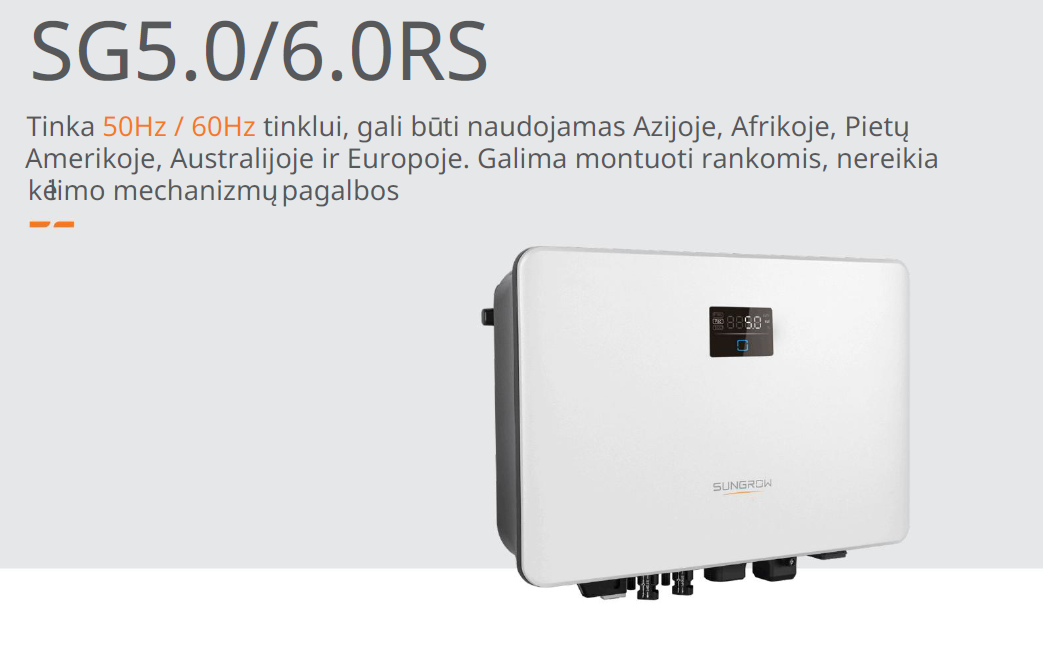

Sungrow SG5.0RS

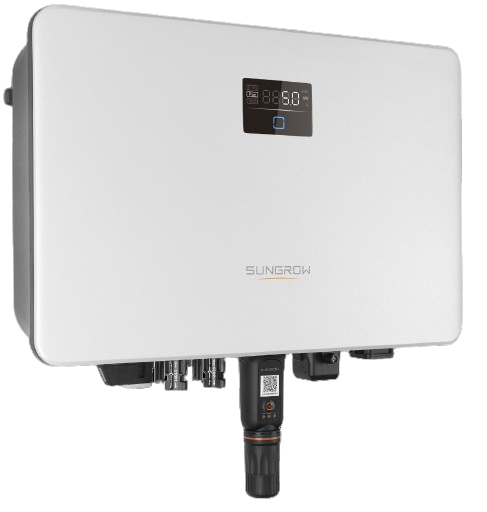

The 1-phase inverter comes with
a smart LED panel for maximum
control.
Check daily energy yield,
instantaneous AC power or the
working state of the inverter.
In case
of an error occurring, the error code
will be displayed on the screen - for
quick issue solving.
„The WiNet module combines Ethernet and
WiFi connection in one port. With a refresh rate
of 10 sec., data is always
accurate and reliable.
Safe
In case of an arc fault (HF noise) the inverter will be
disconnected swiftly from the grid and interrupt the
arc fault circuit in
less than 200 ms.
This feature
improves personal safety, protects equipment,
and
prevents damage of the solar system.
Simple

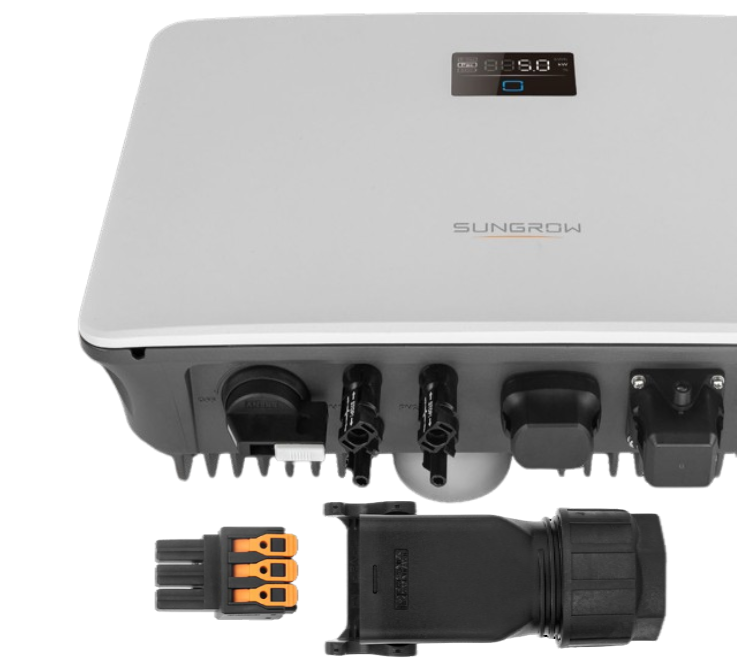

Thanks to its compact and light design, the inverter
is very easy to handle and install. All connectors are
accessible externally and are designed in plug and
play style, for maximum fun during installation.
The Original
The 1-phase inverter - original since its launch. The display and the push - click - go connector
make this product as easy as possible to handle.
The perfect solution for houses
with limited rooftop size.
SG2.0RS-S, SG2.5RS-S, SG3.0RS-S, SG3.0RS, SG3.6RS, SG4.0RS, SG5.0RS, SG6.0RS
Remote monitoring of the Solar Power Plant
Monitor the activity of the solar power plant by using the ISolarCloud application on your mobile phone or by using the website: https://www.isolarcloud.eu/ , these tools will give you access to the Inverter performance data, production schedules, status and other information.

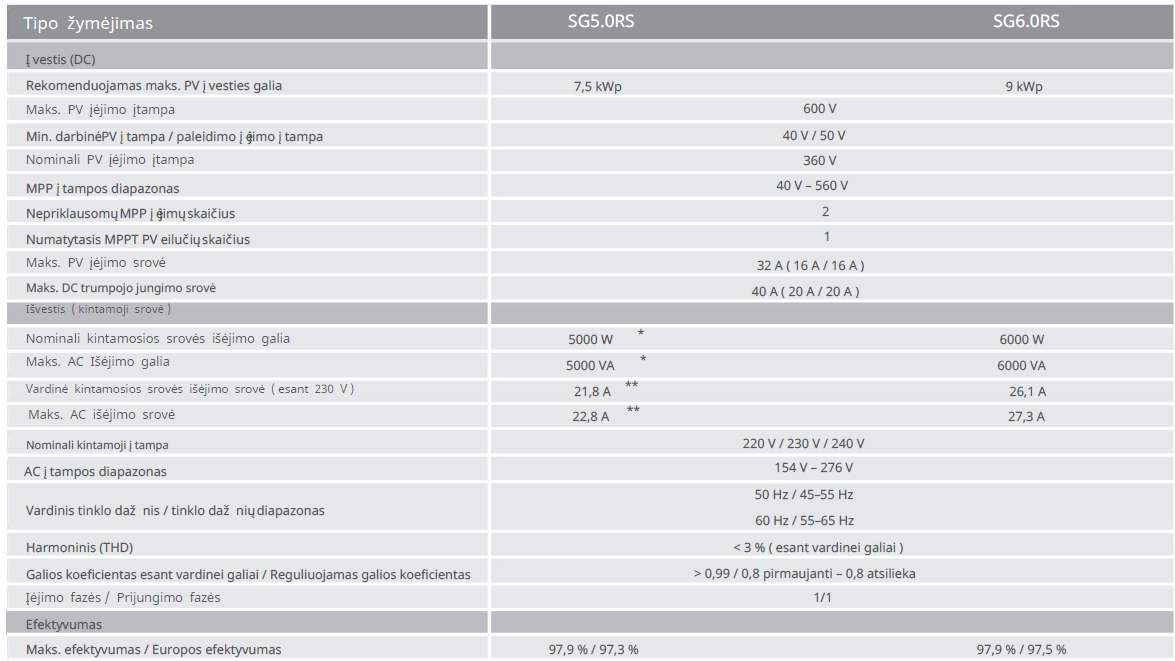

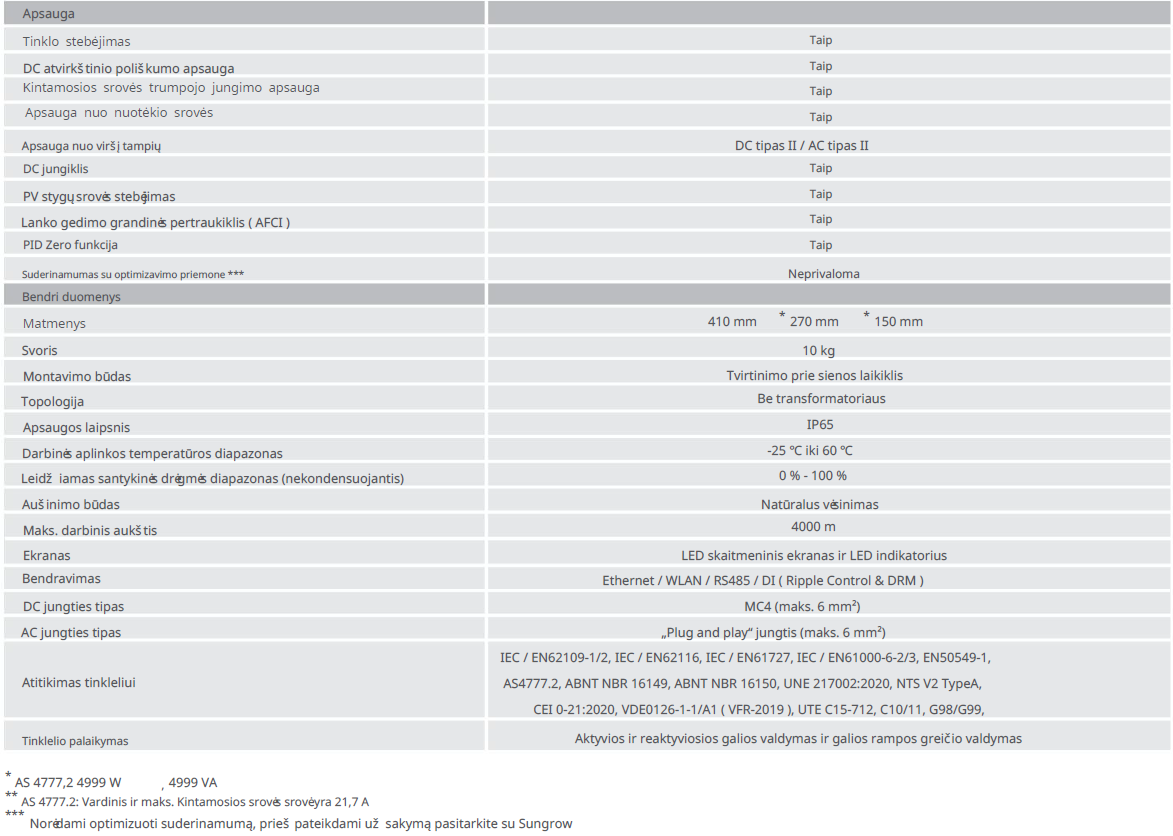

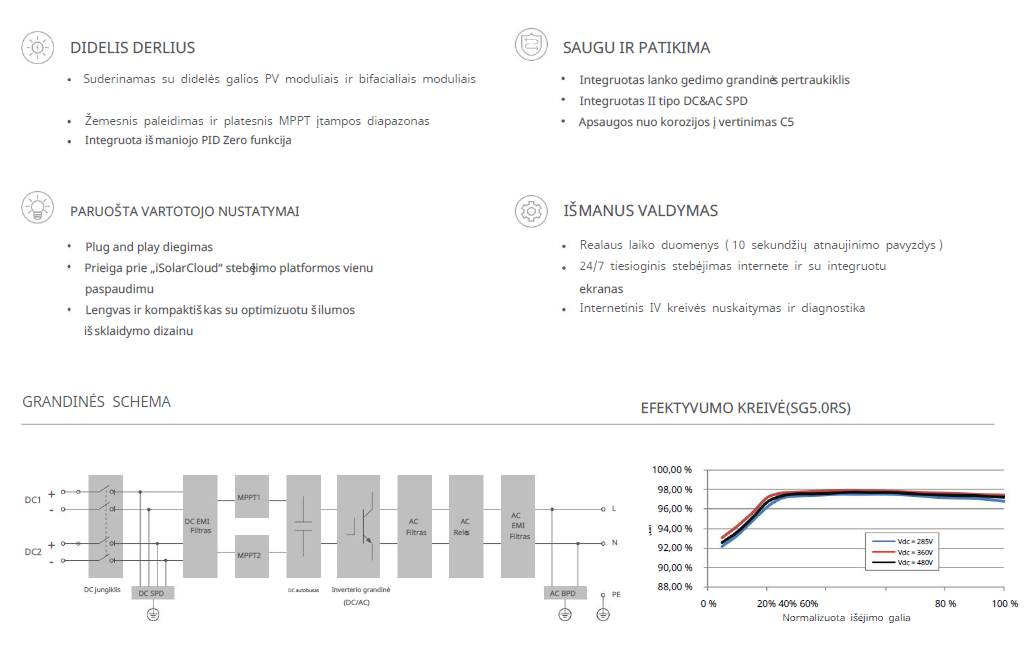

We invite you to familiarize yourself with the technical documentation of the current converter, where you will find all the necessary information. Below are the data sheets in Lithuanian, if you want to see the parameters in English, click on the link marked below this text.
