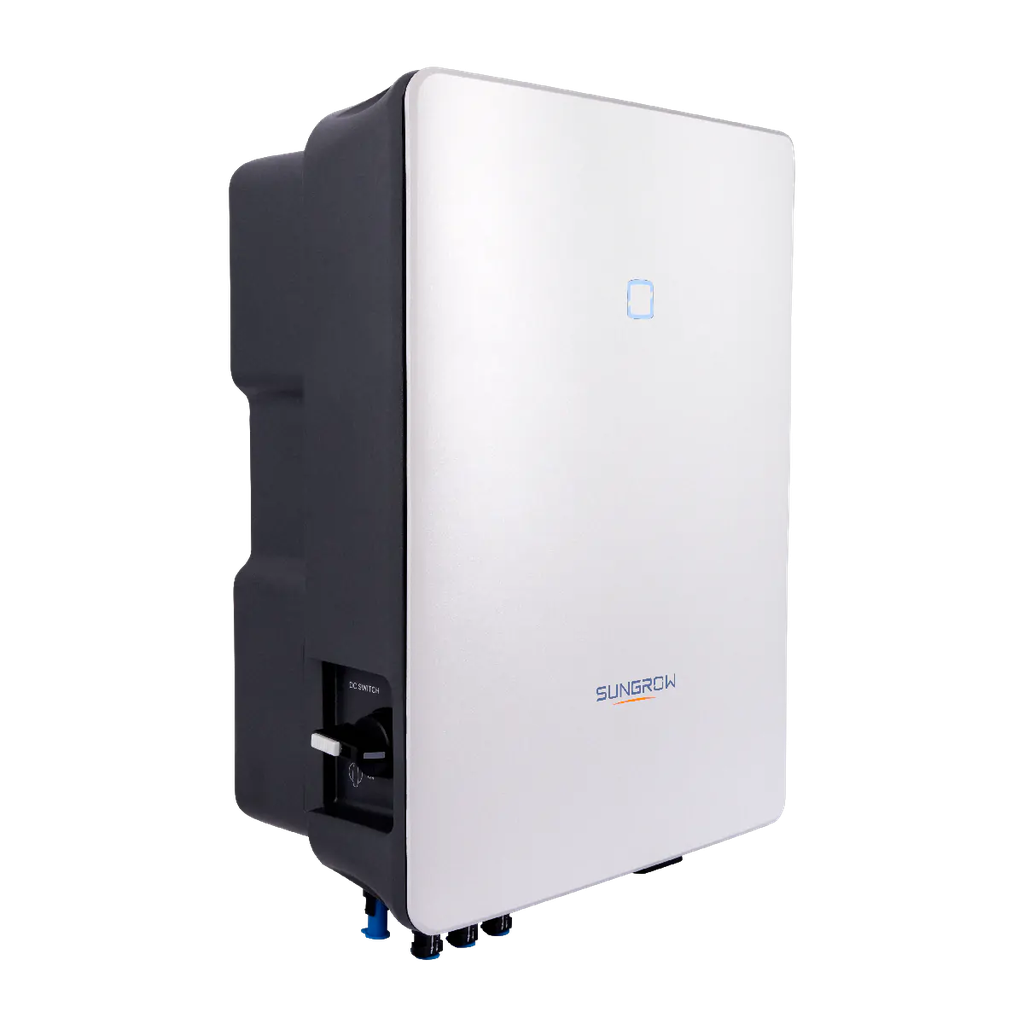

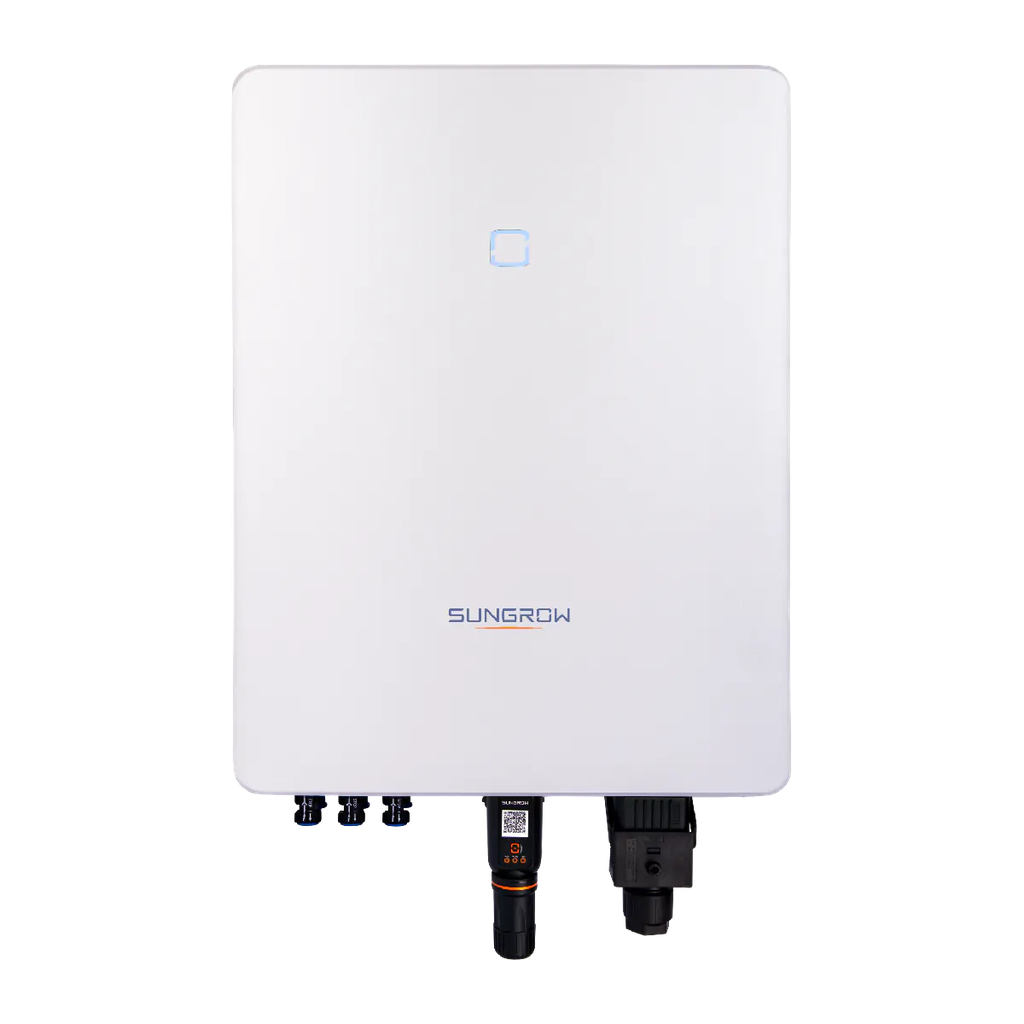

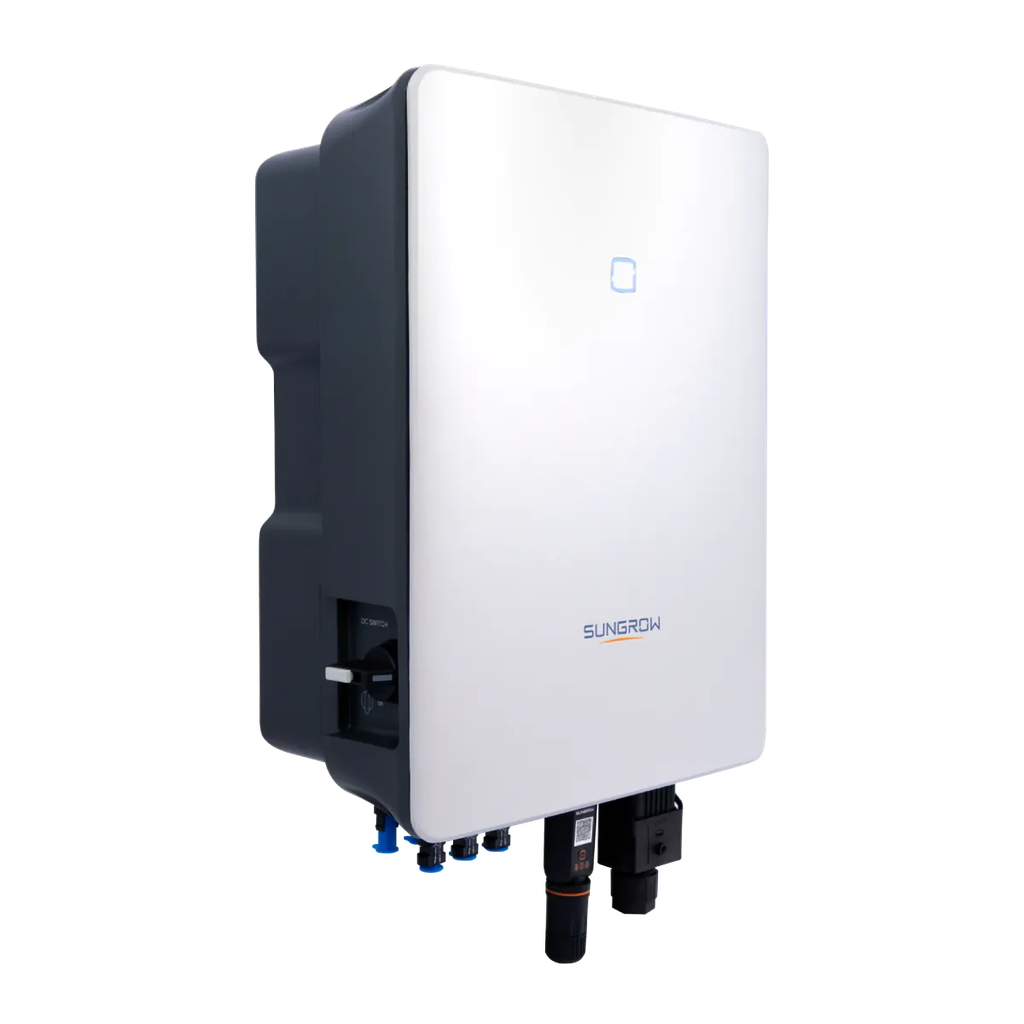

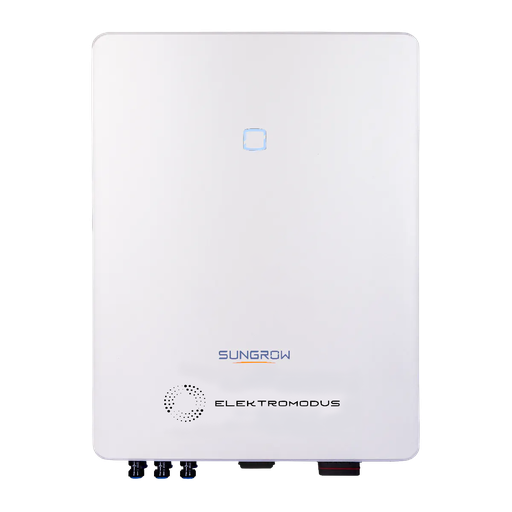

String inverter 3Ph. SUNGROW SG10.0RT
Nominal power: 10kW
MPPT: 2+1
Maximum. DC input power: 15000W
Maximum efficiency: 98.5%
MPPT Input voltage range: 160-1000V
Maximum DC input voltage: 1100V
Protection class: IP65
Dimensions: 370 × 480 × 195 mm
Weight: 18 kg
Control: Led indicator, app, website
Manufacturer's warranty: 10 years.
This product is no longer available.
SUNGROW
CLEAN POWER FOR ALL
ADVANCED
The PID Recovery technology
makes sure to get 100 % out
From PV system. No more
polarization - no more losses.
FLEXIBLE
„WiNet“ module offers
maximum flexibility. It combines
Ethernet and WiFi and delivers
plant data every 10 seconds.
SAFE
AFCI technology
will shut down the PV system
in less than 200 ms in case of an
arc fault event, maximum safety.
Sungrow SG10.0RT
What’s the benefit of the new PID Recovery?
Electric fields within the solar cell lead to power loss
of the module over time.
The 3-phase uses reverse potential at night
to make the charge carriers diffuse
back and to cancel polarization.
Inverters reduce output power at high
temperatures in order to prevent hardware
damage That's why a high-quality cooling system
is essential. The fans ensure optimum
temperature management inside the inverter
by adjusting their speed to any ambient
temperature changes.
The Advanced
More power, more functions, less needed space. Compared to its functions the 3-phase PV
inverter
is very compact and easy to install.
The perfect solution for bigger rooftops.
SG3.0RT, SG4.0RT, SG5.0RT, SG6.0RT, SG7.0RT, SG8.0RT, SG10RT, SG12RT, SG15RT, SG17RT, SG20RT
Remote monitoring of the Solar Power Plant
Monitor the activity of the solar power plant by using the ISolarCloud application on your mobile phone or by using the website: https://www.isolarcloud.eu/ , these tools will give you access to the Inverter performance data, production schedules, status and other information.
We invite you to familiarize yourself with the technical documentation of the current converter, where you will find all the necessary information. Below are the data sheets in Lithuanian, if you want to see the parameters in English, click on the link marked below this text.
