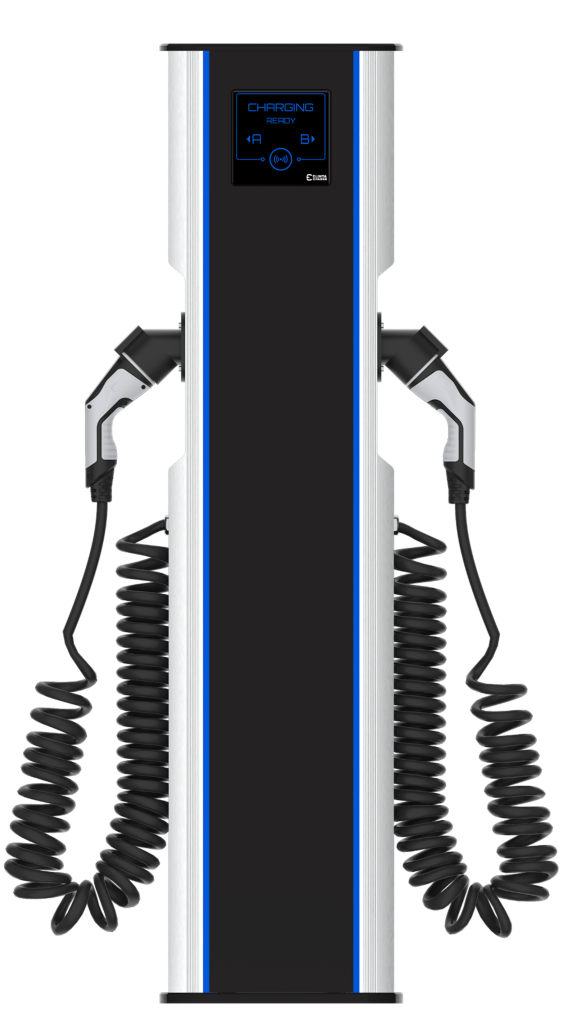

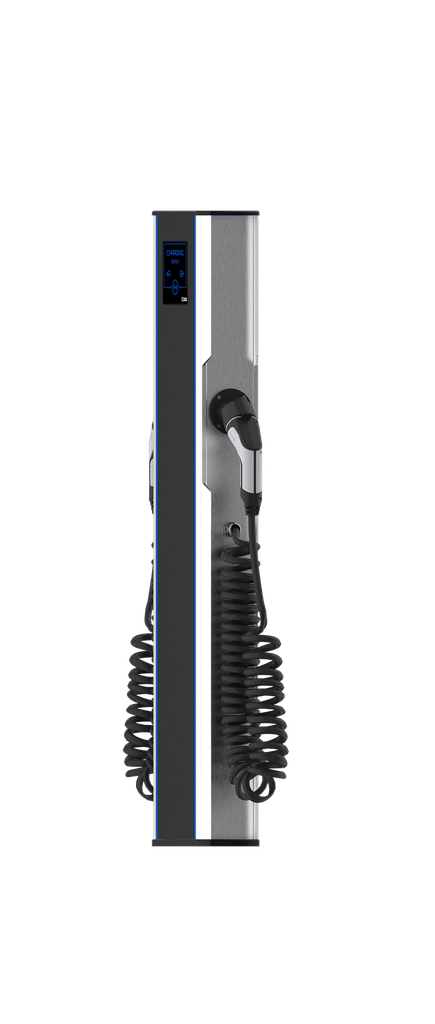

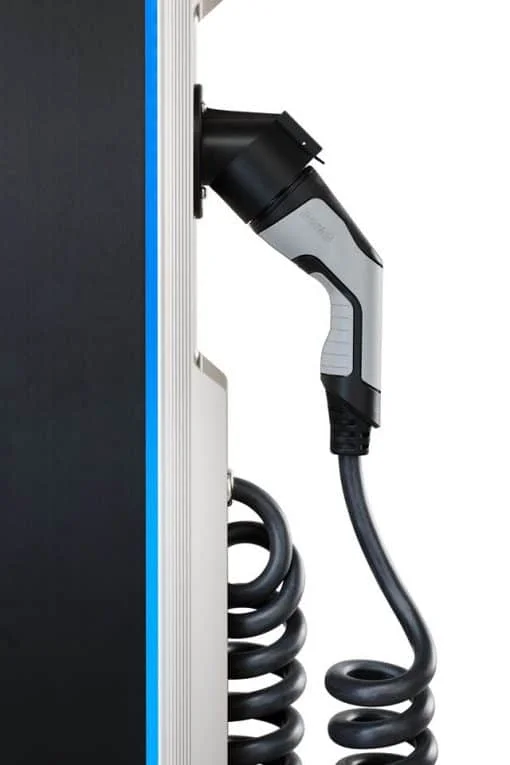

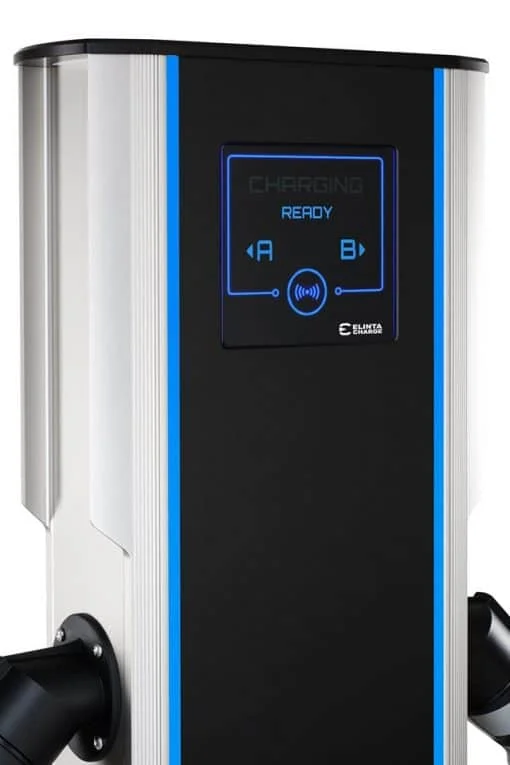

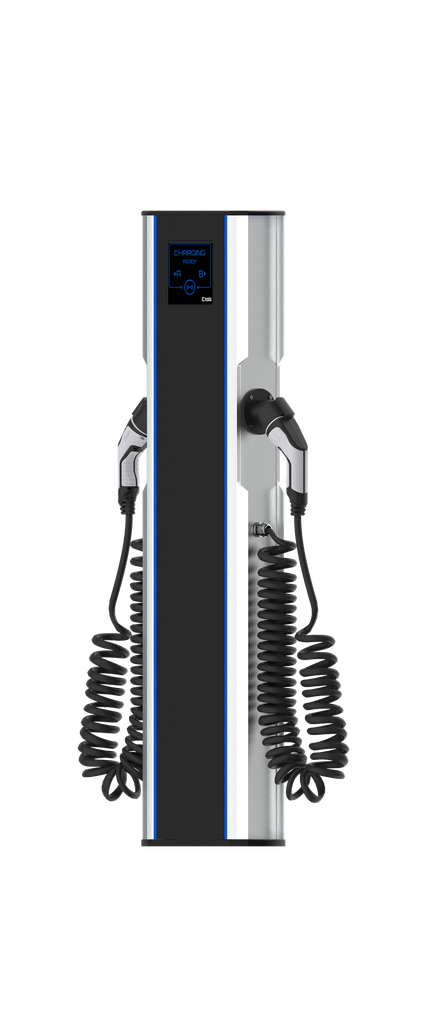

EC EV charger City Charge V2 Plus
Mounted on the ground
Attractive design
Bright LED lighting display
Solid aluminum body
Integrated smart energy accounting
RFID identification
Power distribution-balancing system
4G/WiFi/LAN/OCPP
Online administration of Elios.cloud
This product is no longer available.
2-5 darbo dienų trukmės pristatymas, taipogi galite prekes atsiimti Vilniuje arba Šiauliuose. Kilus klausimams: info@elektromodus.lt
EV charging stations
City Charge V2
Classified as a Mode 3 medium speed EV charging station, capable of delivering up to 44kW (2 x 22kW) of electricity using two Type 2 charging sockets. CityCharge V2 is manufactured using the highest quality materials. The robust body is made of CNC extruded, CNC machined and anodized aluminum components for exceptional durability. The highest quality electronics with an integrated climate control function ensure reliable operation and stable charging of the electric car even in the worst weather conditions. The bright LED screen and side stripes are clearly visible both in bright sunlight and in the dark and emphasize the modernity of the design. A pleasant and quiet ride for you, with City Charge taking care of the energy.
For private garages
Company territory
Car park charging
Technical datasheet
Lizdo tipas: 2 x Type2 conforming to IEC62196 (Mode 3)
T2S Shutter Socket + Phoenix Contact spiral cable
Input power: 3 or 1 phase 400 V/AC 50 Hz 64 A or 32 A
Output power:
2 x 3 phase 400 V/AC 32 A (2 x 22 kW)
2 x 3 phase 400 V/AC 16 A (2 x 11 kW)
2 x 1 phase 230 V/AC 32 A (2 x 7,4 kW)
2 x 1 phase 230 V/AC 16 A (2 x 3,7 kW)
Connection (optional): 4G connection to Elios.cloud and OCPP 1.6 JSON
WiFi connection Elios.cloud and OCPP 1.6 JSON
LAN communication in Elios.cloud and OCPP 1.6 JSON
Power distribution-balancing system
User interface: LED light display
RFID user access control
Management by mobile application on the phone
LED status indication
smart email energy meter (MID)
Security: Charging cable lock
Short circuit protection
Current leakage protection
Current drain relay auto-drive (optional)
Other data: Operating temperature: from -30 °C to +50
Other data: Operating temperature: from -30 °C to +50
Ik10 burst resistance
Corrosion resistance (anodized aluminum)
Dimensions: 150 x 350 x 1370 mm
Weight: 35 kg
Resistance to UV rays
