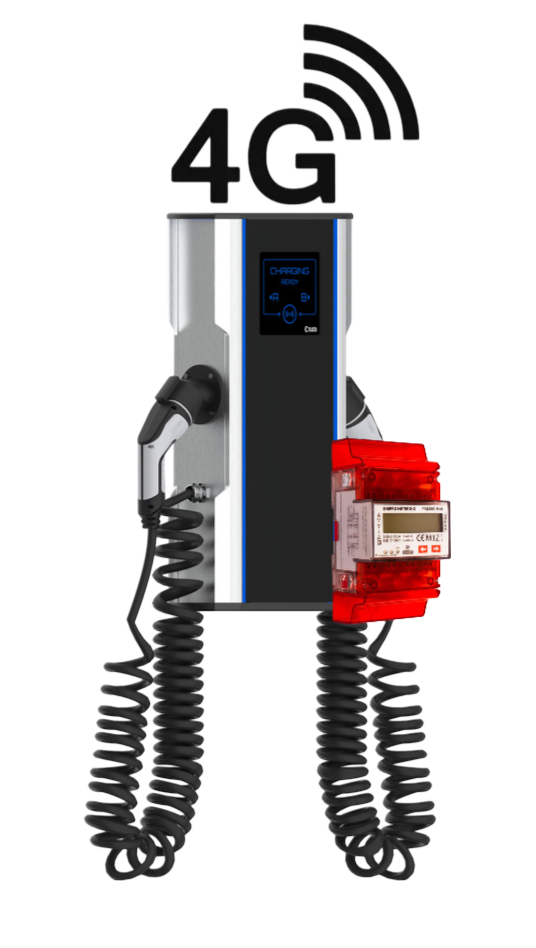

City Charge MINI2
The CityCharge Mini2 electric vehicle charging station is classified as a medium-speed charging station, capable of supplying up to 44 kW (2 x 22 kW) of electricity. The Type 2 charging socket complies with IEC62196. The highest quality materials are used in the production of the station. The robust body is made of extruded, CNC-machined and anodized aluminum components for exceptional durability. The highest quality electronics with an integrated climate control function ensure reliable operation and stable charging of the electric car even in the worst weather conditions. The bright LED screen and side stripes are clearly visible both in bright sunlight and in the dark and emphasize the modernity of the design. A pleasant and quiet ride for you, with City Charge taking care of the energy.
CityCharge Mini 2 – Fast and Reliable EV Charging
The CityCharge Mini 2 is a high-quality, fast-charging station designed for use in homes, offices, commercial, or public areas. This model provides convenient and efficient electric vehicle charging with cutting-edge technology and sleek design.
Key Features:
- Up to 2×22 kW Power: Equipped with two "Type 2" connectors, it allows simultaneous charging of two vehicles, offering up to 44 kW total power (Mode 3 charging).
- Top-tier Quality: Its CNC-machined aluminum body with anodized coating ensures a robust and durable enclosure, suitable for extreme weather conditions (operating range from -30 °C to +50 °C).
- Smart Management: Supports Wi-Fi, 4G, and LAN connectivity, and integrates with the Elios.lt system, enabling comprehensive charging control and monitoring.
- Dynamic Load Balancing (DLM): Ensures efficient energy distribution, preventing overloads in your electrical grid.
- Intuitive Display and LED Lighting: A bright screen and side LED indicators are clearly visible even in direct sunlight, offering excellent visibility at night.
- Safety and Reliability: Includes built-in protections against leakage and short circuits. The enclosure meets IP54 (protection against dust and moisture) and IK10 (vandal resistance) standards.
Application Areas:
The CityCharge Mini 2 is suitable for diverse locations such as city centers, shopping malls, hotels, office buildings, or private driveways. It’s an excellent choice for corporate fleets or commercial spaces needing a reliable and high-quality EV charging solution.
This station also supports RFID authorization, making it easily integrable into payment systems for public use.
Technical datasheet
Socket type: 2 x Type2 conforming to IEC62196 (Mode 3)
T2S Shutter Socket
Input power: 3 or 1 phase 400 V/AC 50 Hz 64 A or 32 A
Output power:
2 x 3 phase 400 V/AC 32 A (2 x 22 kW)
2 x 3 phase 400 V/AC 16 A (2 x 11 kW)
2 x 1 phase 230 V/AC 32 A (2 x 7,4 kW)
2 x 1 phase 230 V/AC 16 A (2 x 3,7 kW)
Connection (optional): 4G connection to Elios.cloud and OCPP 1.6 JSON
WiFi connection Elios.cloud and OCPP 1.6 JSON
LAN communication in Elios.cloud and OCPP 1.6 JSON
Power distribution-balancing system
User interface: LED light display
RFID user access control
Management by mobile application on the phone
LED status indication
smart email energy meter (MID)
Security: Charging cable lock
Short circuit protection
Current leakage protection
Current drain relay auto-drive (optional)
Other data: Operating temperature: from -30 °C to +50
Other data: Operating temperature: from -30 °C to +50
Ik10 burst resistance
Corrosion resistance (anodized aluminum)
Dimensions: 150 x 350 x 1370 mm
Svoris: 21 kg
Resistance to UV rays
Specifications
| Cable | Integrated 5m. cable or Socket |
| Communication | 4G LTE or Wi-Fi/ LAN |
| Dynamic Load Management | With DLM or Without DLM |
