​​Solar power hybrid inverters, also operating in off-grid mode:

•  Chisage Mars-6G2-LE (Nominal Power: 6kW)
•  Chisage Mars-8G2-LE (Nominal Power: 8kW)
•  Chisage Mars-10G2-LE (Nominal Power: 10kW)
•  Chisage Mars-12G2-LE (Nominal Power: 12kW)
•  Chisage Mars-14G2-LE (Nominal Power: 14kW)

​ ​We invite you to familiarize yourself with the technical documentation of the current converter and electricity storage device and other useful materials, where you will find all the necessary information. Below are the data sheets of the Chisage ESS hybrid converters in Lithuanian, if you want to see the parameters in English, click on the link marked under this text.

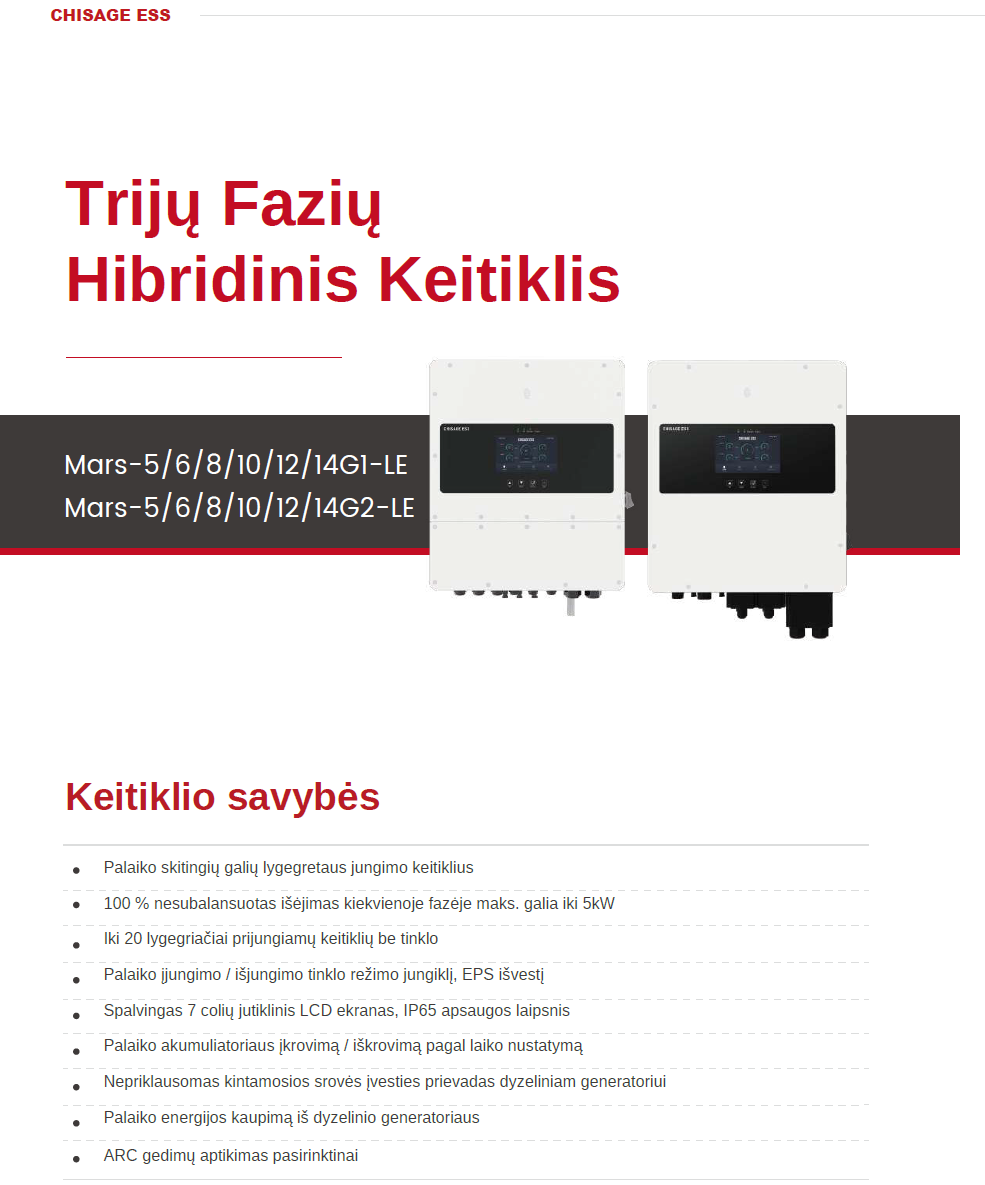

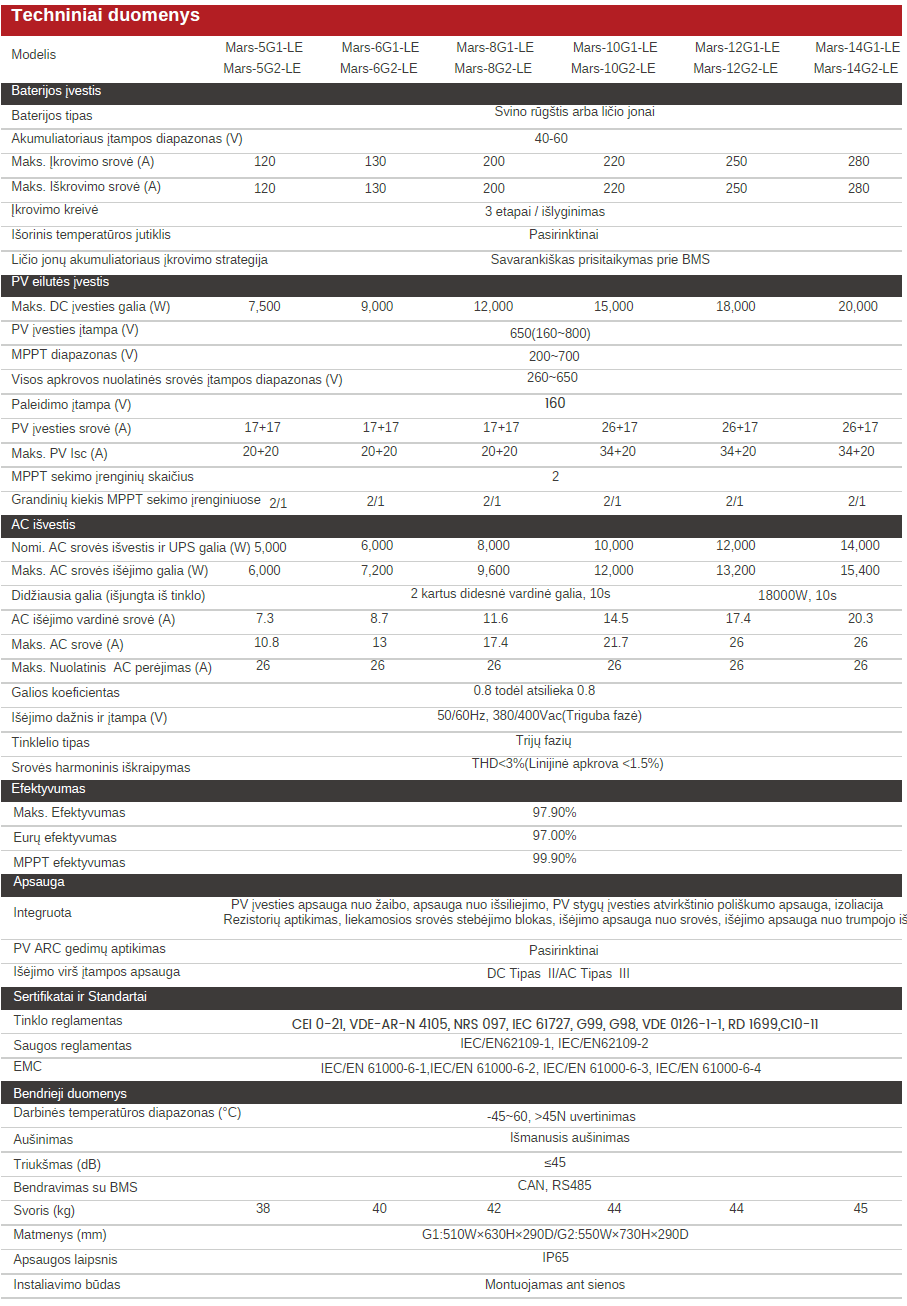

 Technical Datasheet: Chisage MARS-6-14G2LE 3 Phase Hybrid inverter

 ​Technical Datasheet: Chisage MOON5-R Pro Energy Storage System

 Chisage Manufacturer's Warranty: MARS Three Phase Hybrid Inverter

 User Manual: Chisage ESS 3Phase Hybrid Current Transformer

 Declaration Of Comformity: Chisage ESS Grid Code Requirements

Installation Manual: Chisage MARS Series Current Transformers

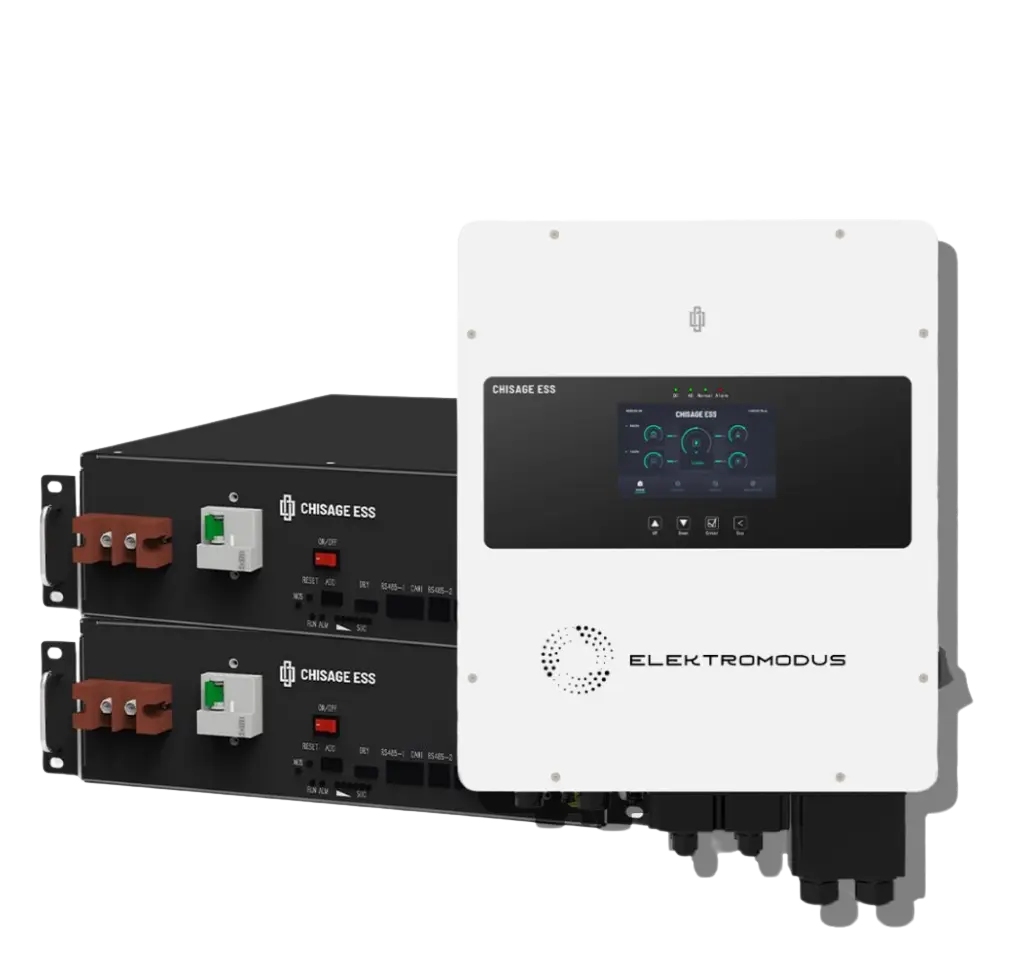

Chisage Hybrid Energy Systems: A Smart Solution for Your Home and Business

​​
​We invite you to familiarize yourself with the technical characteristics of the Chisage ESS current inverter and the principles and advantages of the hybrid system. Chisage ESS offers advanced hybrid energy systems that allow for efficient management and storage of electricity for both residential and commercial users. These systems consist of 6-14 kW three-phase hybrid inverters and modular storage devices with capacities ranging from 10 to 16 kWh.

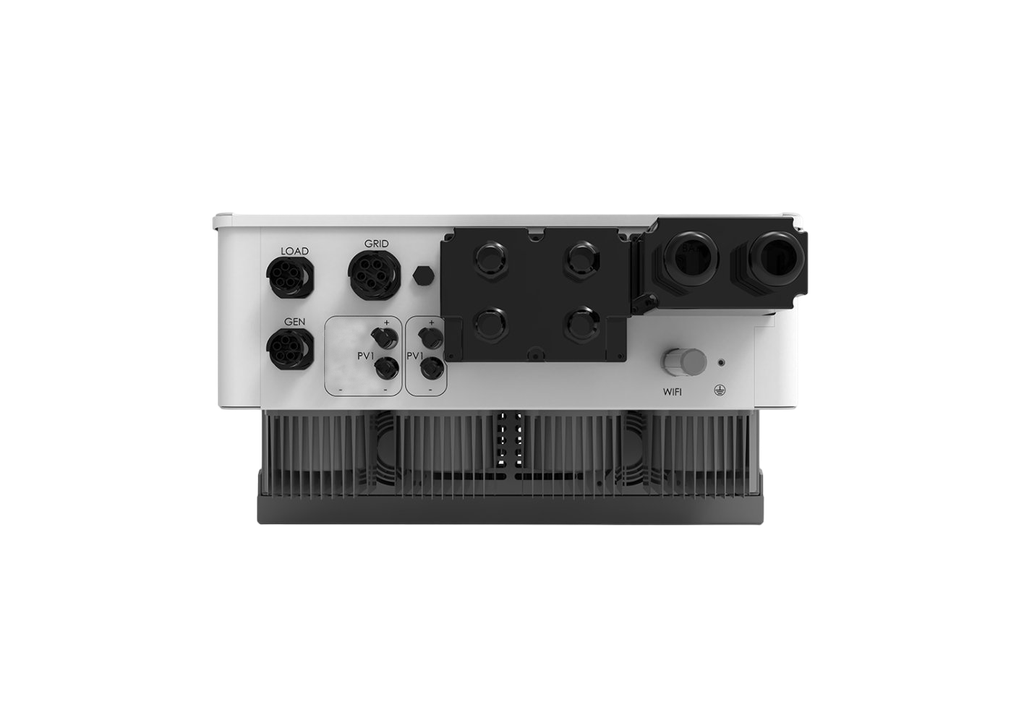

⚡ Hybrid Inverter: Mars Series (6-14 kW)

„Chisage Mars“ series converters have the following characteristics:

• Power: 5-14 kW, maximum AC output power up to 15.4 kW.
• Efficiency: maximum efficiency reaches 97.9%, MPPT efficiency – 99.9%.
• MPPT trackers: 2 trackers with 2+1 string configuration ensuring optimal use of solar energy.
• Battery charging/discharging: maximum current up to 280 A, 48 V voltage range supported (40-60 V).
• UPS function: switching time less than 5ms, ensuring uninterrupted power supply.​
• Control: 7-inch color touch screen and intelligent load control.​
• Protection: IP65 protection class, protection against overcurrent, short circuit, reverse polarity, etc.

• Parallel operation: the ability to connect up to 20 inverters, so the system can be expanded according to your needs.



🔋 Energy storage devices: MOON series (5.12 kWh)

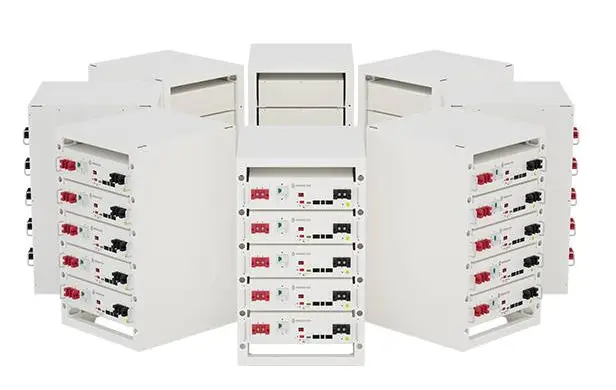

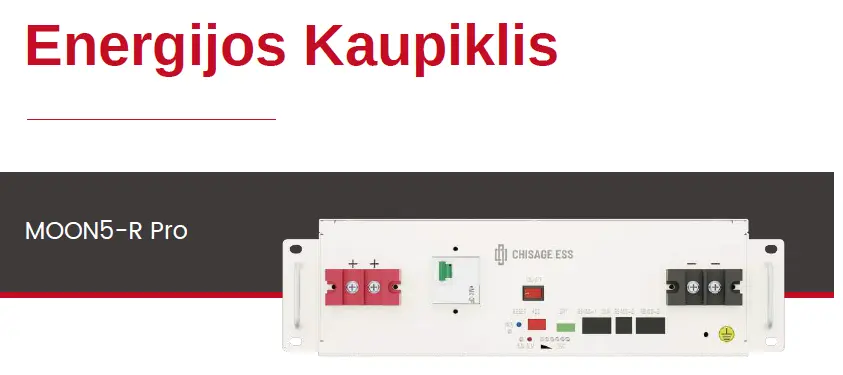

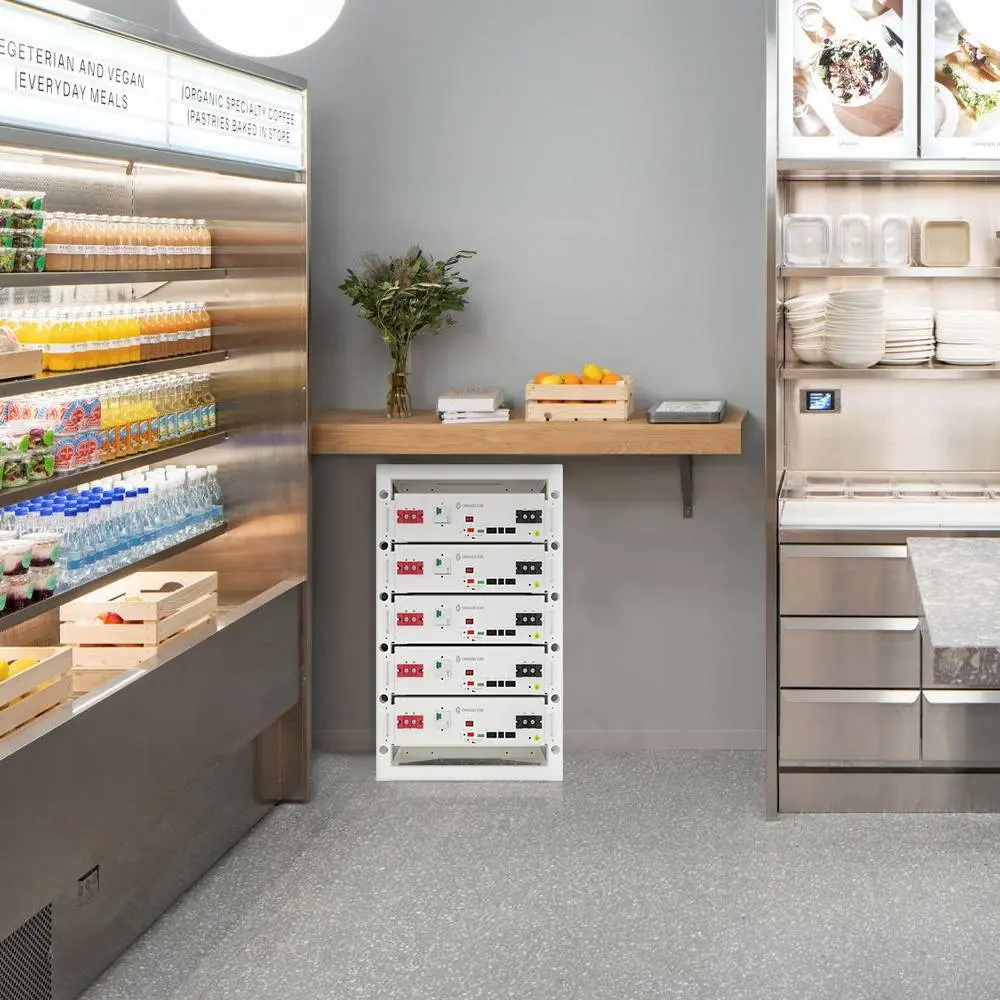

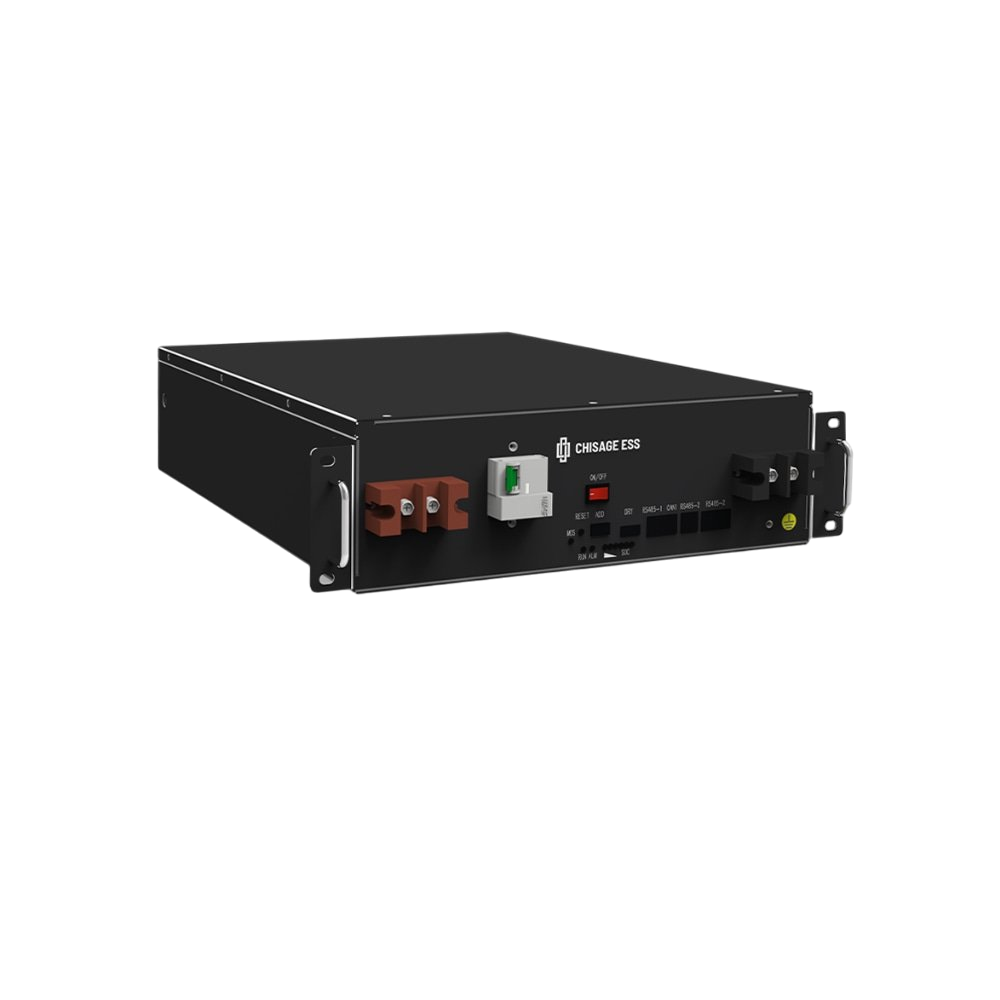

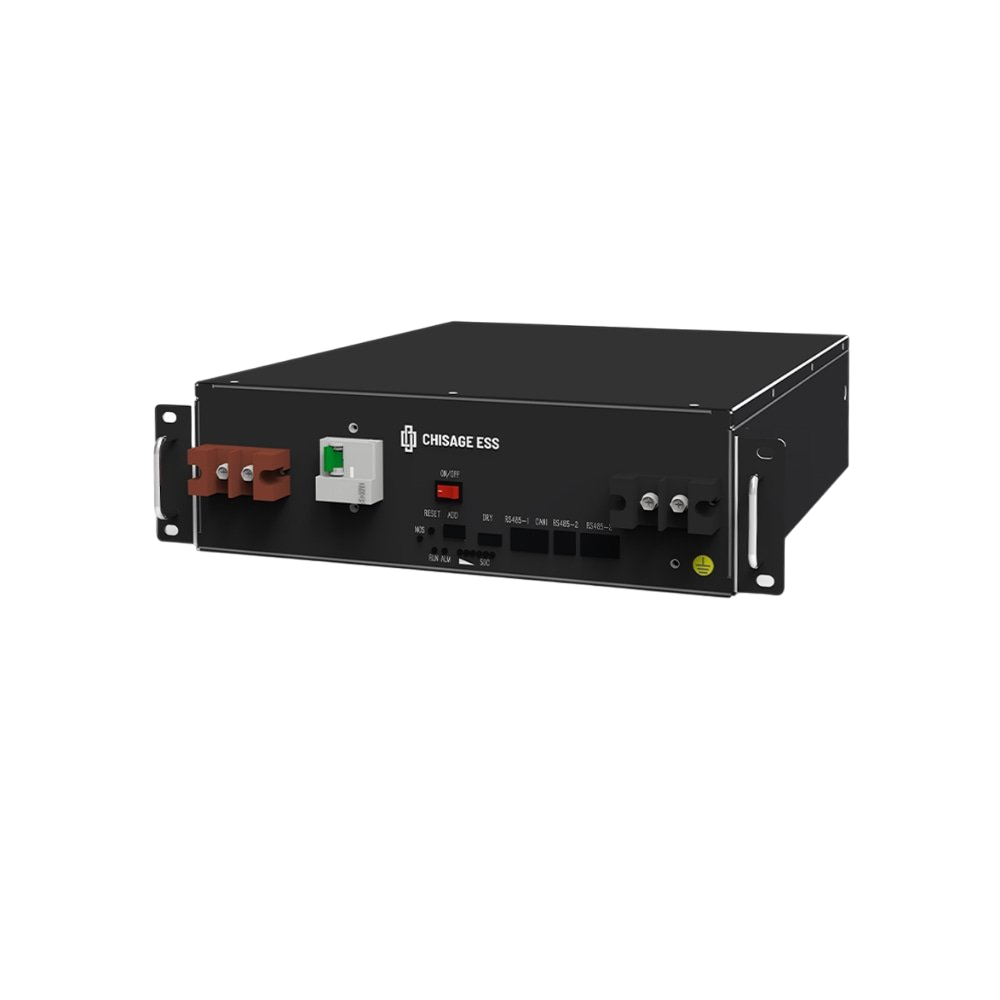

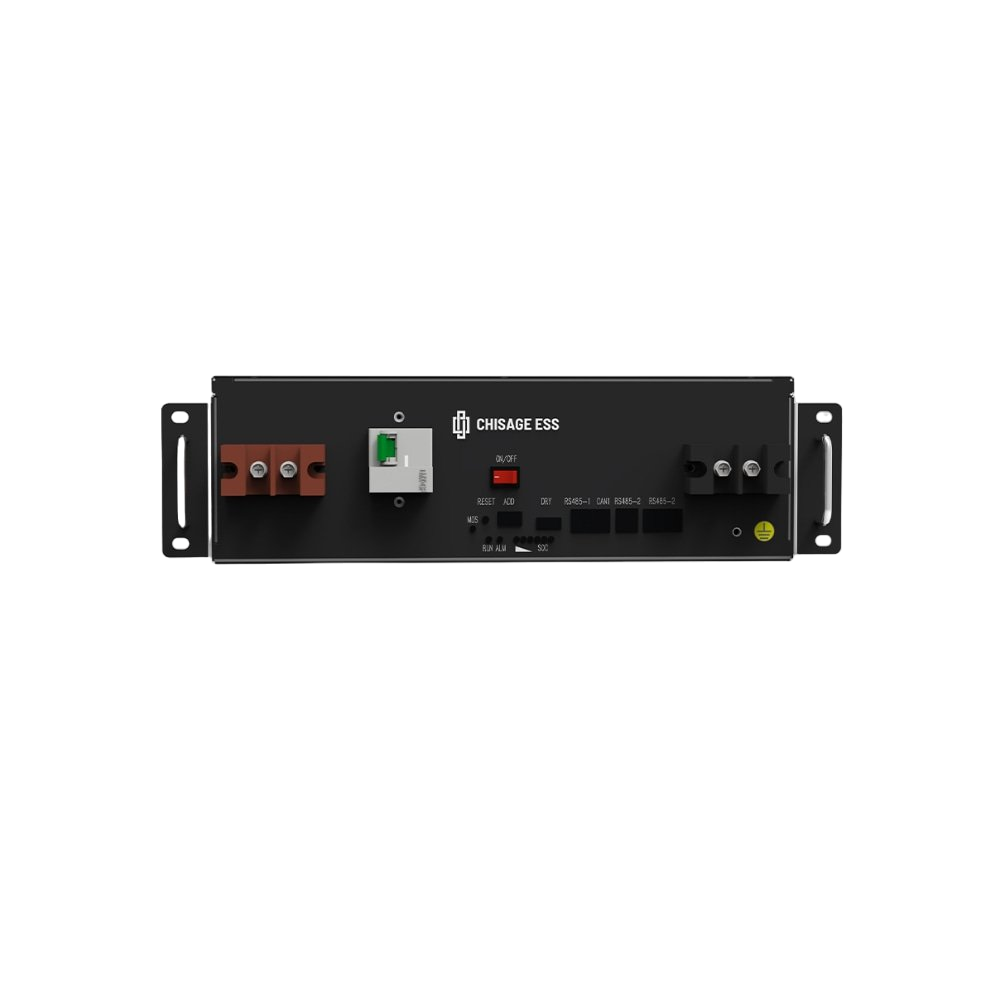

​​„Chisage MOON5-R Pro“ – a compact, 5.12 kWh LiFePO₄ (LFP) energy storage system for both residential and commercial use. This model features high security, durability and the ability to expand the system as needed.

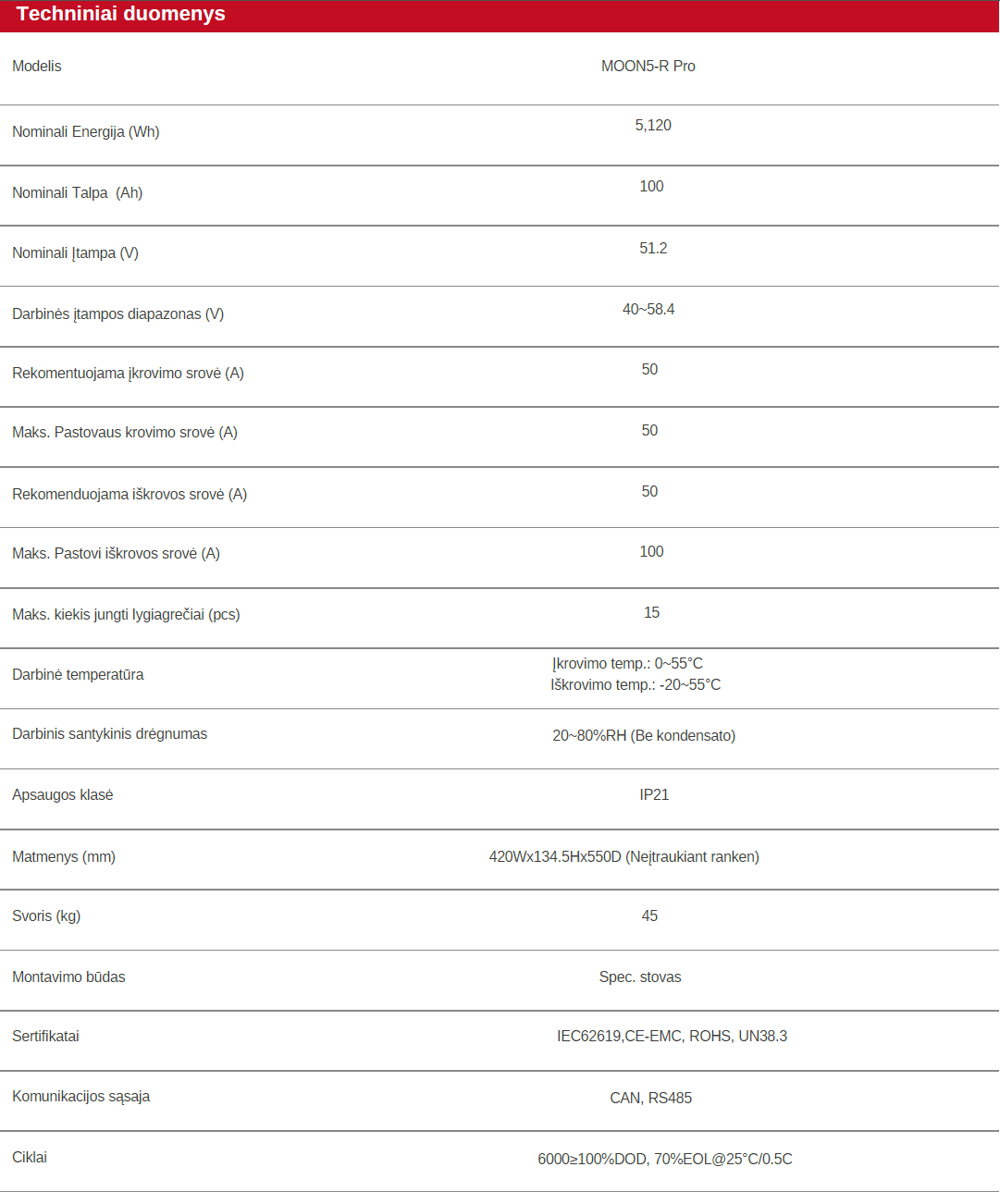

Main technical characteristics:

• Nominal capacity: 5,12 kWh (51,2 V, 100 Ah)
• Charge/discharge current: recommended – 50 A; maximum continuous discharge current – ​​100A​
• Voltage range: 40–58,4 V
• Life cycles: ≥6000 cycles at 100% DOD, 70% EOL at 25°C / 0.5°C​
• Parallel connection: up to 15 devices can be connected, total capacity expandable to 76.8 kWh​
• Management: Integrated BMS with fuse, CAN and RS485 communication protocols​
• Protection class: IP21

• Dimensions and weight: 420 mm (width) × 134.5 mm (height) × 550 mm (depth); weight - 45 kg

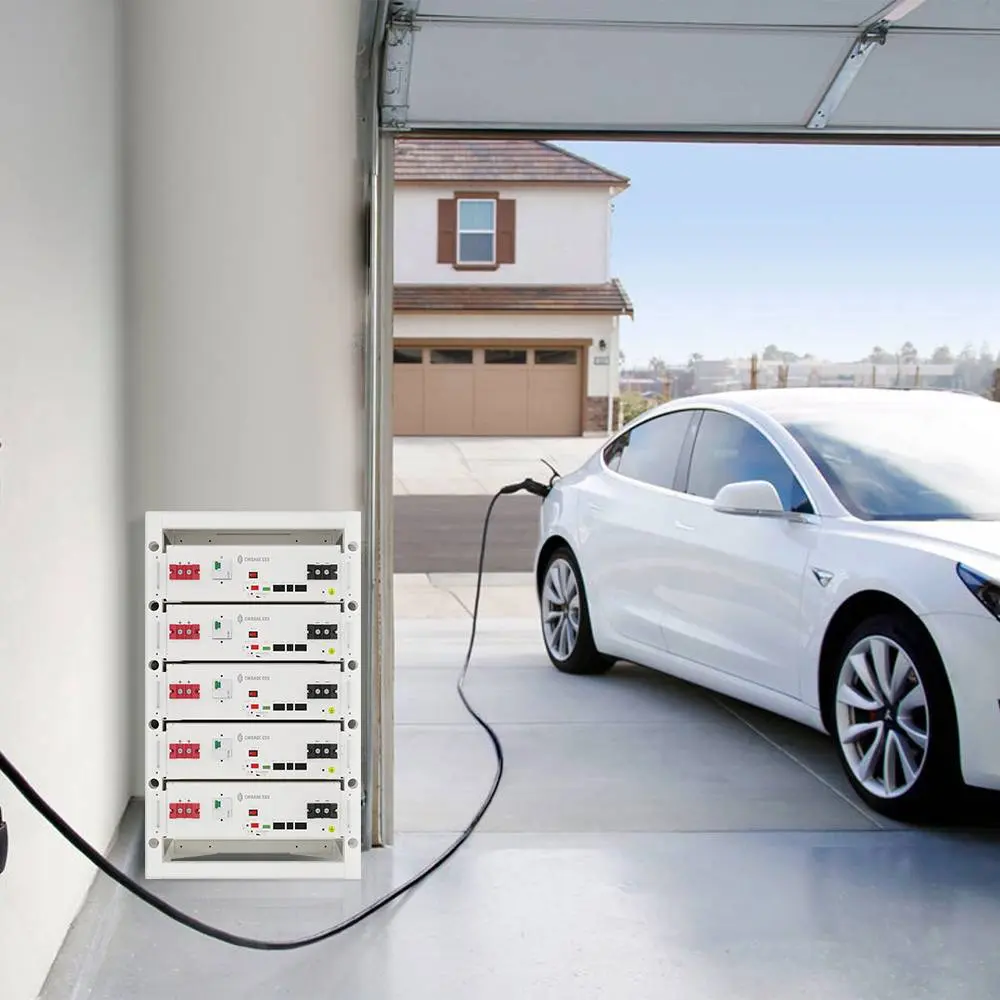

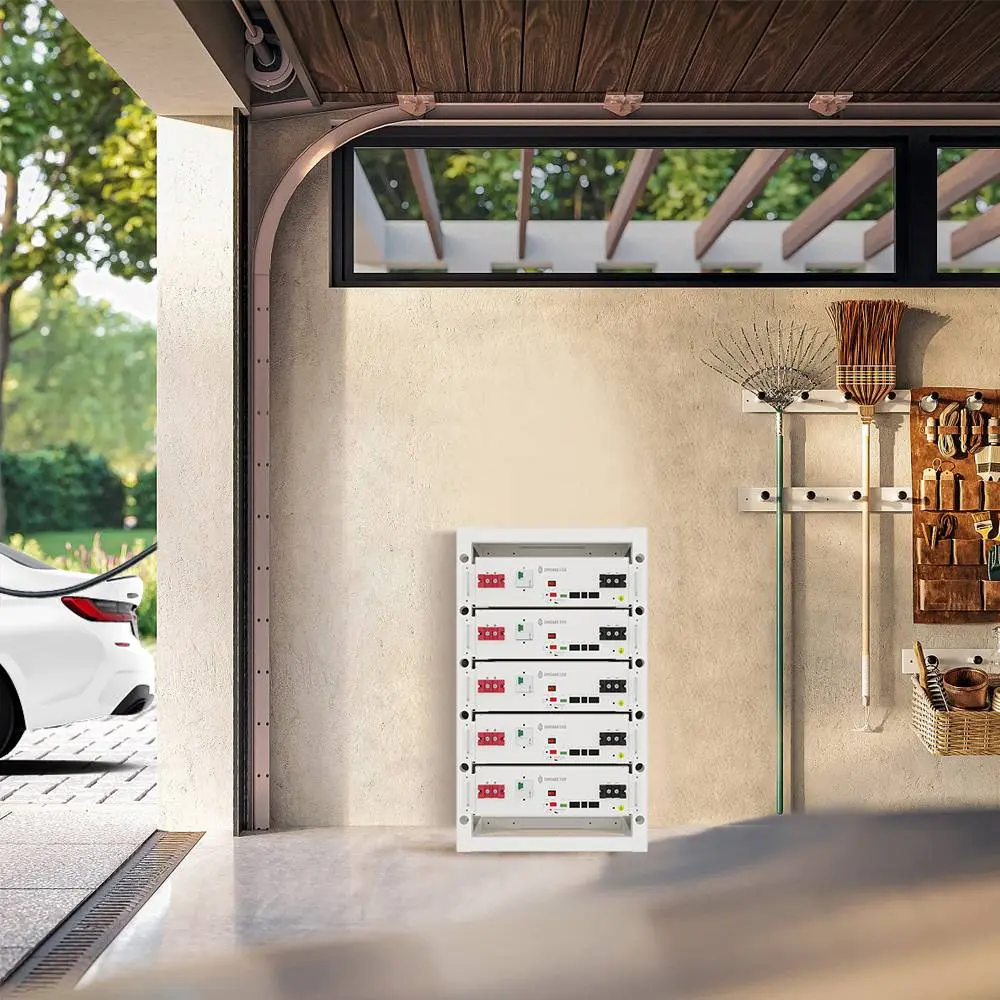

• Installation: The battery is installed in a specially made cabinet.

🏡 Who are Chisage hybrid systems suitable for?

​These energy storage systems are a great choice:

• For residential buildings: ensures electricity supply even in the event of a power outage.​
• For business: helps reduce electricity costs and ensures a stable power supply.
• For farms and remote areas: allows you to use solar energy independently of the electricity grid.

• For those seeking energy independence: provides the opportunity to store and use the energy produced.


✅ Why choose Chisage?

• Modular systems: the ability to adapt the system to individual needs.

• High efficiency: ensures maximum use of solar energy.
• Reliability: Long lasting batteries and inverters with high-quality components.

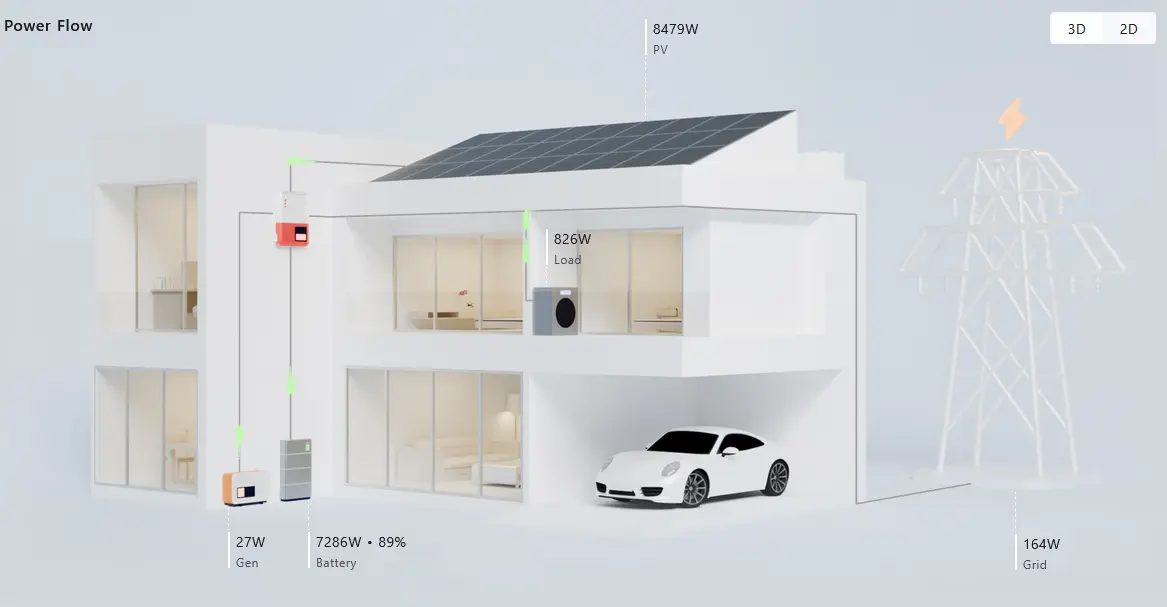

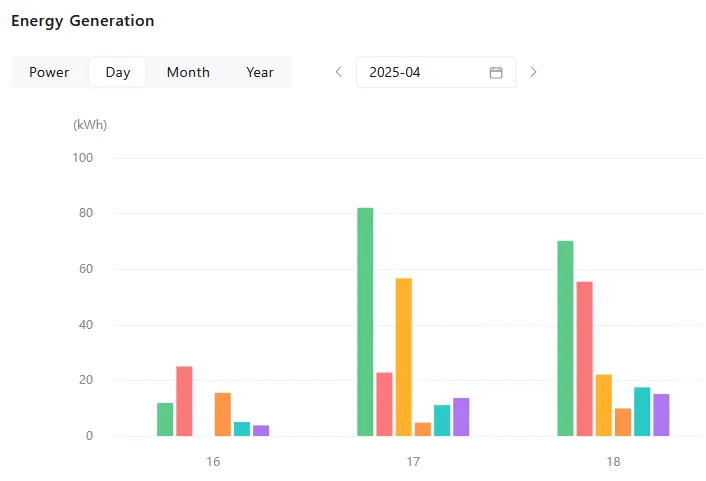

• Easy operation: intuitive touchscreen and remote monitoring capabilities.
• Technical support: both from Elektromodus and from the manufacturer!

​Chisage hybrid power systems are a smart, efficient and reliable solution to your energy needs. Whether you want to reduce your electricity bills or ensure uninterrupted power supply, Chisage ESS offers solutions that will meet your expectations.

See the Chisage MOON5RPro production line!

​Welcome to contact us for sales or technical questions regarding Chisage Mars/Moon/Jupiter/Mercury products and start a new path in energy management processes!
