3ph. Hybrid Energy Storage System Chisage Mars+CE48200
Create your hybrid storage system according to your needs!
Energy storage systems
Solar power hybrid inverters, also operating in off-grid mode:
- Chisage Mars-6G2-LE (Nominal Power: 6kW)
- Chisage Mars-8G2-LE (Nominal Power: 8kW)
- Chisage Mars-10G2-LE (Nominal Power: 10kW)
- Chisage Mars-12G2-LE (Nominal Power: 12kW)
- Chisage Mars-14G2-LE (Nominal Power: 14kW)
We invite you to familiarize yourself with the technical documentation of the current converter and electricity storage device and other useful materials, where you will find all the necessary information. Below are the data sheets of the Chisage ESS hybrid converters in Lithuanian, if you want to see the parameters in English, click on the link marked under this text.
Technical Datasheet: Chisage MARS-6-14G2LE 3 Phase Hybrid inverter
Technical Darasheet: Chisage CE48200 Energy Storage
Chisage Manufacturer's Warranty: MARS Three Phase Hybrid Inverter
User Manual: Chisage ESS 3Phase Hybrid Current Transformer

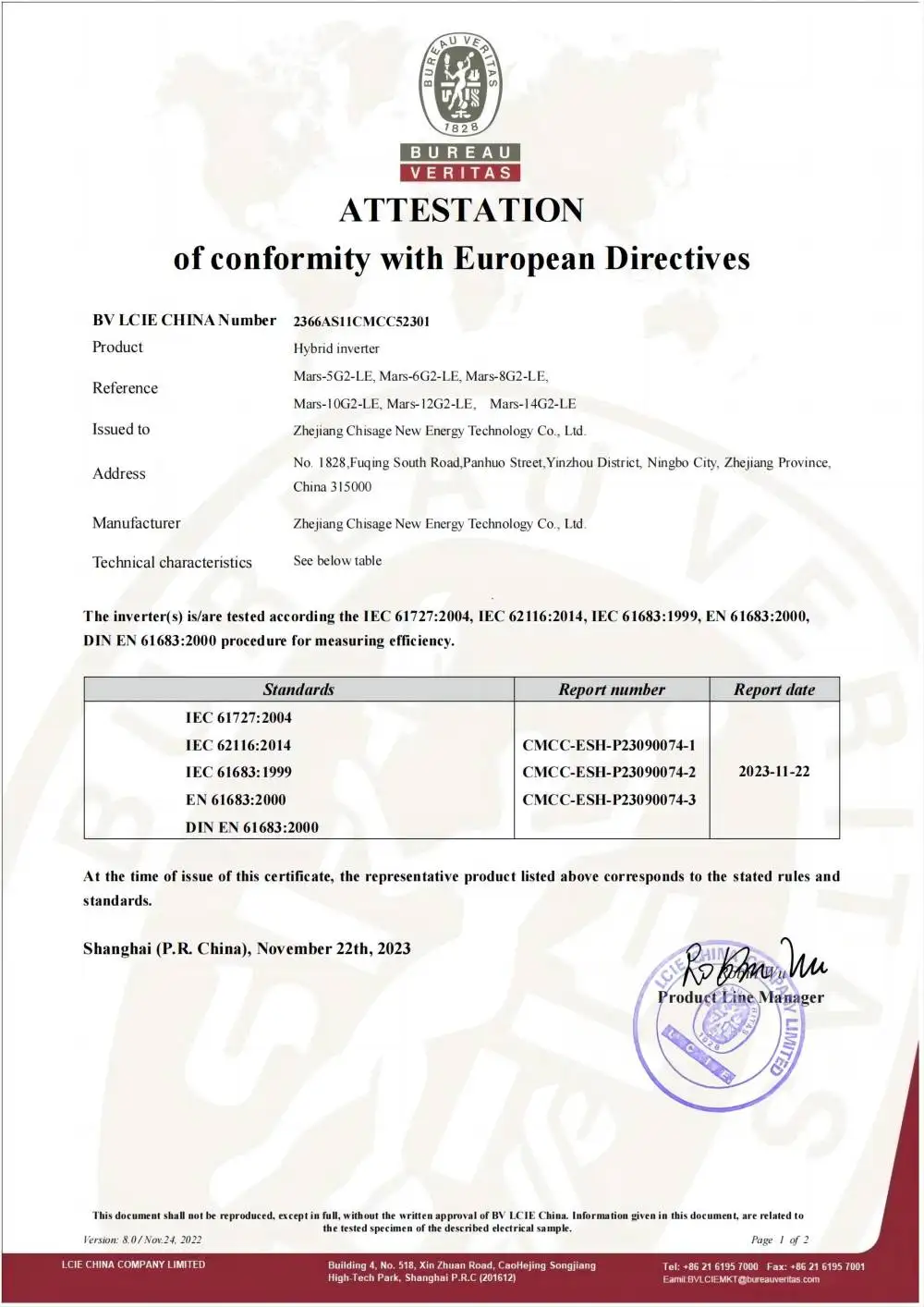

Declaration Of Comformity: Chisage ESS Grid Code Requirements
Installation Manual: Chisage MARS Series Current Transformers
Chisage Hybrid Inverters
„CHISAGE ESS“ is a leading supplier and manufacturer of solar cells and solar inverters, headquartered in Ningbo, China. To actively expand its energy storage business and services, it relies on mature energy storage technology and a professional R&D team led by doctors from home and abroad. The company invests in its own battery pack and inverter factory, with an annual capacity of over 3 GWh Li-FePO4 battery packs and 100,000 inverters.
At present, CHISAGE ESS has developed lithium technology battery packs, energy storage inverters, integrated energy storage systems, container energy storage systems, portable power supplies and other products suitable for individual homes, industrial and commercial, schools, farms and other fields. The product is represented in more than 50 countries and regions around the world, and offices, warehouses and customer service centers have been established in Germany, Italy, Dubai, South Africa, etc.
Energy storage system suitable for residential and commercial
CHISAGE offers a home energy storage system solution that allows homeowners to store excess energy produced by solar modules. Stored energy can later be used during power outages. Hybrid solar power plants also provide ESS solutions for commercial/industrial users using high-capacity lithium-ion batteries, along with high-performance inverters that convert the DC energy stored in the battery into AC energy. The converted power can be used in the facility's electrical system.
Supports 15 parallel connected Chisage Energy Storage Units
„Chisage ESS“ akumuliatorių blokas palaiko iki 15 akumuliatorių lygiagretų prijungimą, todėl galite padidinti akumuliatoriaus talpą ir padidinti energijos tiekimą pagal savo energijos poreikius.
A solar power plant can do more
100% Unbalanced Output
Chisage ESS 3 phase hybrid inverter support 100% unbalanced output, enabling
efficient power distribution across all phases. Each phase can deliver a maximum
output of up to 50% of its rated power, providing flexibility and optimal performance.
AC Input Port for Generator
Chisage ESS 3 phase hybrid inverter support 100% unbalanced output, enabling efficient
power distribution across all phases. Each phase can deliver a maximum output of up to
50% of its rated power, providing flexibility and optimal performance.
Chisage CE48200-W – tai pažangus LiFePO₄ energijos kaupiklis, sukurtas užtikrinti patikimą ir efektyvų elektros energijos saugojimą tiek namų ūkiams, tiek komerciniams objektams. Šis modelis išsiskiria aukšta kokybe, ilgaamžiškumu ir suderinamumu su įvairiomis saulės energijos sistemomis.
🔋 Main technical features
- Nominal energy: 10,24 kWh
- Nominal Capacity: 200 Ah
- Nominal Voltage: 51,2 V
- Operating voltage range: 40–58,4 V
- Maximum charge/discharge current: 100 A
- Number of cycles: ≥6000 cycles in 100% DOD
- Protection class: IP65 – dust and water resistance
- Dimensions: 520 x 196,5 x 970 mm
- Weight: 94 kg
-
Warranty: 10 years
⚙️ Exclusive features
- High inverter compatibility: ensures seamless integration with various inverter models.
- Modular expansion: possibility to connect up to 15 units in parallel, allowing you to adapt the system to individual energy needs.
- Safety and environmental friendliness: LiFePO₄ technology guarantees a high level of safety, durability and non-toxicity.
-
Efficiency: High useful energy ratio and low self-consumption increase overall system efficiency.
🏠 Application areas
Chisage CE48200-W is the ideal solution
- For households: ensures power supply even during power outages.
- For commercial objects: helps to optimize energy consumption and ensures uninterrupted operation.
-
For solar energy systems: It aims to store excess solar energy and use it later, increasing energy independence.
🌍 About the manufacturer
Chisage ESS is a global leader in energy storage solutions with over 20 years of experience. The company has offices in over 40 countries, including Poland, Germany, Italy, Dubai and South Africa, ensuring high-quality products and customer service worldwide.
📈 Why choose Chisage CE48200-W?
- Reliability: long-lasting and safe LiFePO₄ technology.
- Versatility: modular system, adaptable to individual needs.
- Efficiency: High energy utilization coefficient.
- Compatibility: easily integrated with existing energy systems.
- Resistance to environmental conditions: IP65 protection class allows for both indoor and outdoor use.
Chisage CE48200-W – It is a reliable and efficient energy storage solution that meets the needs of modern energy consumers. Invest in energy independence and sustainability today
Remote monitoring of solar power plants
Monitor the operation of your solar power plant using the PVPRo application on your mobile phone or via the website https://sboost.inteless.com , These tools will give you access to Inverter performance data, production schedules, status and other information.
Welcome to contact us for sales or technical questions regarding Chisage Mars/Moon/Jupiter/Mercury products and start a new path in energy management processes!
Specifications
| Hybrid Set Inverter: | Mars-6G2-LE, Mars-8G2-LE, Mars-10G2-LE, Mars-12G2-LE, Mars-14G2-LE |
| Hybrid Set Battery: | CE48200 10kWh, CE48200 20kWh, CE48200 30kWh, CE48200 40kWh |
